Description
General part information

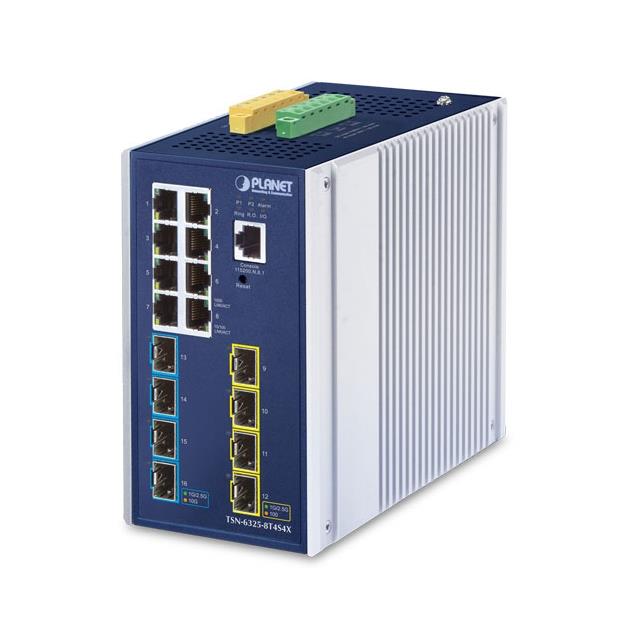

TSN-6325-8T4S4X
Network Switch - Managed 16 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | TSN-6325-8T4S4X |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | RJ45, SFP |
| Copper Ports | 8 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Fiber Ports | 8 |
| Fiber Type | SFP+, SFP |
| Ingress Protection | IP30 |
| Mounting Type | Wall Mount, DIN Rail |
| Number of Ports | 16 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| SFP/XFP Ports (Count) | 8 |
| SFP/XFP Type | SFP, SFP+ |
| Type | Switch - Managed |
| Voltage - Input (DC) Maximum | 48 V |
| Voltage - Input (DC) Minimum | 9 VDC |
| Voltage - Input (Nominal) | 24 VAC |
