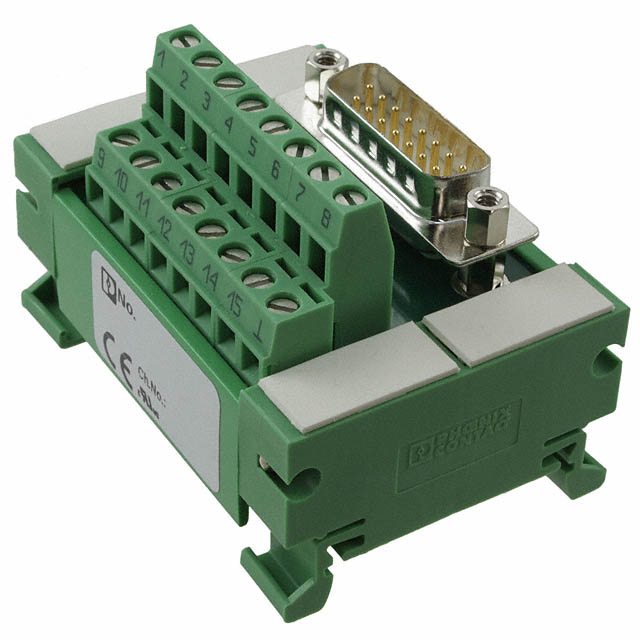

Specification	2962780

Control Side Cable Retainer Type	Jackscrew Socket
Control Side Connection Gender	Male
Control Side Connection Shape	D-Sub
Current Rating (Per Contact)	2.5 A
Length	2.559 in
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Positions / Poles	15
Process Side Connection	Terminal Blocks, Screw Connection
Voltage - Rated	125 VAC
Width	1.772 in
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	16 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
