8168 0601000

Active

Belden Inc.

MULTI-PAIR 16COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 16COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8168 0601000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter	0.479 in
Jacket (Insulation) Diameter	12.17 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	16
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 2493
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Usage	Wire Gauge	Cable Type	Shield Coverage	Voltage	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Conductor Material	Jacket (Insulation) Material	Features	Number of Conductors	Ratings	Shield Type
Belden Inc. 8168 0601000	0.479 in	12.17 mm	Computer	24 AWG	Multi-Pair	65 % 100 %	300 V	Aluminum Copper Tinned	-40 °C	60 °C	Chrome	0.048 in	1.219 mm	1000 ft	304.8 m	32 AWG	7	Foam Polyethylene (FPE)	Copper Tinned	Poly-Vinyl Chloride (PVC)	Drain Wire	16	UL Style 2493	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 16.25

General part information

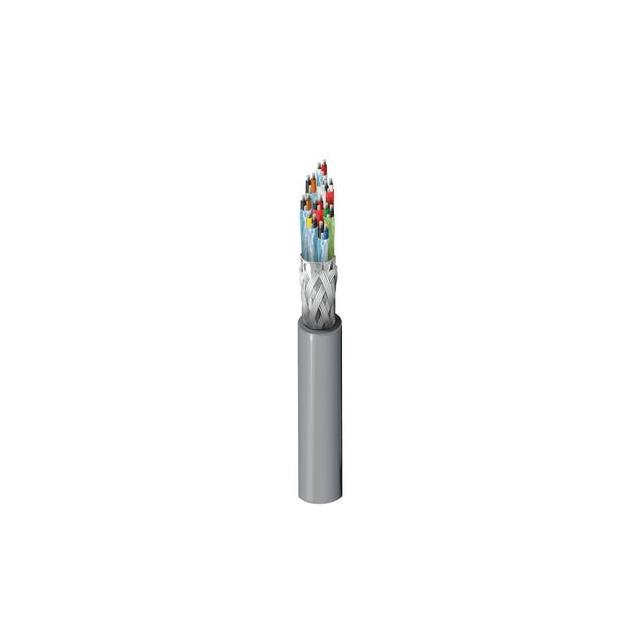

16 (8 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 1000.0' (304.8m)
