Description
General part information
09456000111

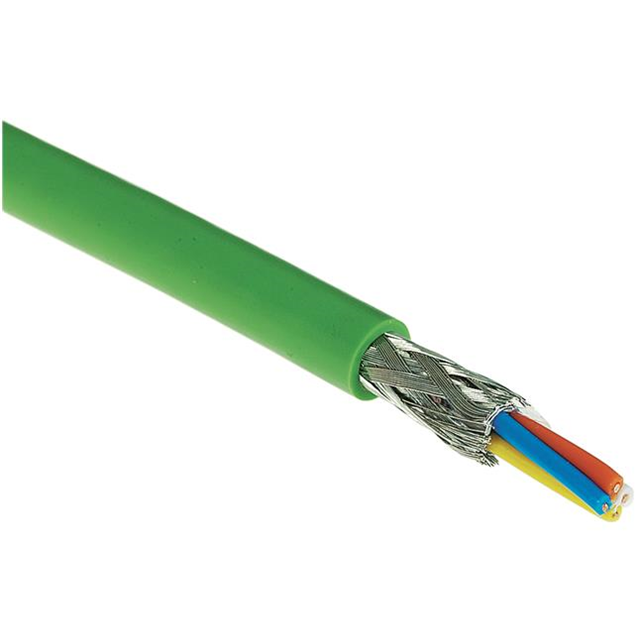

4 Conductor Multi-Conductor Cable Green 22 AWG Foil, Braid 1640.4' (500.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 09456000111 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Polyethylene (PE) |
| Jacket (Insulation) Diameter | 0.256 in |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Green |
| Length | 1640.4 ft |
| Number of Conductors | 4 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Coverage | 100 % |
| Shield Type | Braid, Foil |
| Wire Gauge | 22 AWG |
