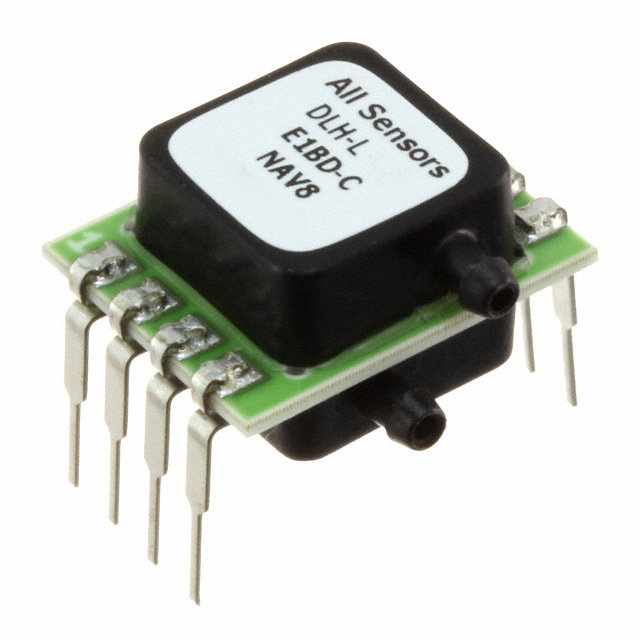

DLH-L05D-E1BD-C-NAV8
ActiveAmphenol All Sensors Corporation
SENSOR 0.18PSID 0.09" 16BIT 8DIP
Deep-Dive with AI
Search across all available documentation for this part.
DLH-L05D-E1BD-C-NAV8
ActiveAmphenol All Sensors Corporation
SENSOR 0.18PSID 0.09" 16BIT 8DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLH-L05D-E1BD-C-NAV8 |
|---|---|
| Accuracy | 1.5 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 7.23 PSI |
| Maximum Pressure [Max] | 49.83 kPa |
| Mounting Type | Through Hole |
| Operating Pressure | 1.25 kPa |
| Operating Pressure | 0.18 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output | 16 b |
| Output Type | I2C, SPI |
| Package / Case | 0.62 in |
| Package / Case | 15.75 mm |
| Package / Case | Dual Ports, 8-DIP, Same Side |
| Port Size | Dual, Tube, Male |
| Port Size | 2.24 mm |
| Port Size | 0.09 " |
| Port Style | Barbed |
| Pressure Type | Differential |
| Supplier Device Package | 8-DIP |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.68 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.02 | |
| 5 | $ 52.31 | |||
| 10 | $ 48.61 | |||
| 25 | $ 44.12 | |||
| 50 | $ 41.01 | |||
| 100 | $ 38.12 | |||
Description
General part information
DLH-L05D-E1BD-C-NAV8
Pressure Sensor 0.18PSI (1.25kPa) Differential Male - 0.09" (2.24mm) Tube, Dual 16b 8-DIP (0.620", 15.75mm), Dual Ports, Same Side
Documents
Technical documentation and resources
No documents available
