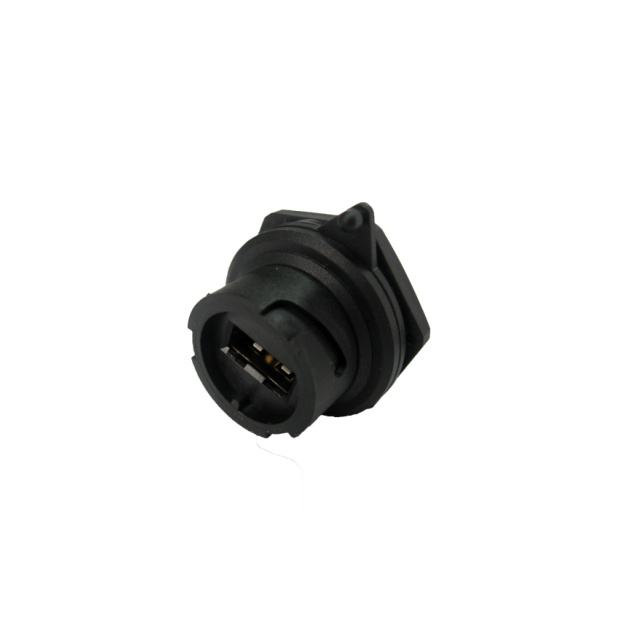

690-W19-260-013

Active

EDAC Inc.

WATERPROOF USB "A" TYPE 4P (F)

Search across all available documentation for this part.

Active

EDAC Inc.

WATERPROOF USB "A" TYPE 4P (F)

Technical Specifications

Parameters and characteristics for this part

Specification	690-W19-260-013

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1 A
Features	Circular Bayonet Coupling
Gender	Plug
Ingress Protection	IPX7 - Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Contacts [custom]	19
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell/Shielding Material	Brass
Shielding	Unshielded
Termination	Solder

Part	Termination	Features	Number of Ports	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell/Shielding Material	Connector Type	Number of Contacts [custom]	Mounting Type	Contact Finish	Ingress Protection	Insulation Color	Gender
EDAC Inc. 690-W19-260-013	Solder	Circular Bayonet Coupling	1	1 A	UL94 V-0	-25 °C	85 °C	Unshielded	Brass	USB-A (USB TYPE-A)	19	Free Hanging (In-Line)	Gold	IPX7 - Waterproof	Black	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) Plug Connector 19 Position Free Hanging (In-Line)
