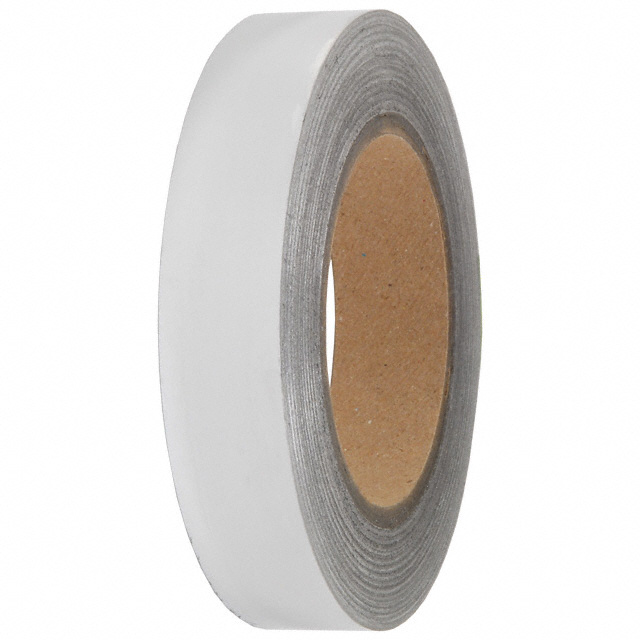

AB6005HF-25MMX10M

Active

3M (TC)

RF ABSORB/SHLD SHEET 10MX0.98"

Search across all available documentation for this part.

Active

3M (TC)

RF ABSORB/SHLD SHEET 10MX0.98"

Technical Specifications

Parameters and characteristics for this part

Specification	AB6005HF-25MMX10M

Adhesive	Single Sided, Non-Conductive
Length [x]	32.81 ft
Length [x]	10 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Shape	Roll
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall	0.11 mm
Thickness - Overall	0.004 in
Type	Absorbing/Shielding Sheet
Width [x]	25 mm
Width [x]	0.98 in

Part	Type	Length	Length	Shape	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Shelf Life Start	Thickness - Overall	Thickness - Overall	Width [x]	Width [x]	Operating Temperature [Min]	Operating Temperature [Max]	Adhesive	Length [x]	Length [x]	Material
3M (TC) AB6005S-8.5-0.3278	Absorbing Sheet	292.1 mm	11.5 "	Rectangular	70 °F	21 °C	12 Months	Date of Shipment	0.11 mm	0.004 in	215.9 mm	8.5 in	-30 ░C	105 ░C	Non-Conductive Single Sided
3M (TC) AB6005S	Absorbing Sheet			Rectangular	70 °F	21 °C	12 Months	Date of Manufacture	0.11 mm	0.004 in	210 mm	8.268 in	-30 ░C	105 ░C	Non-Conductive Single Sided	11.693 in	297 mm	Metal Flakes Polymer Resin
3M (TC) AB6005HF-25MMX10M	Absorbing/Shielding Sheet			Roll	70 °F	21 °C	12 Months	Date of Shipment	0.11 mm	0.004 in	25 mm	0.98 in	-30 ░C	105 ░C	Non-Conductive Single Sided	32.81 ft	10 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 157.04

General part information

RF EMI Absorbing/Shielding Sheet AB6005HF Non-Conductive, Single Sided 0.980" (25.00mm) X 32.810' (10.00m) X 0.004" (0.11mm)
