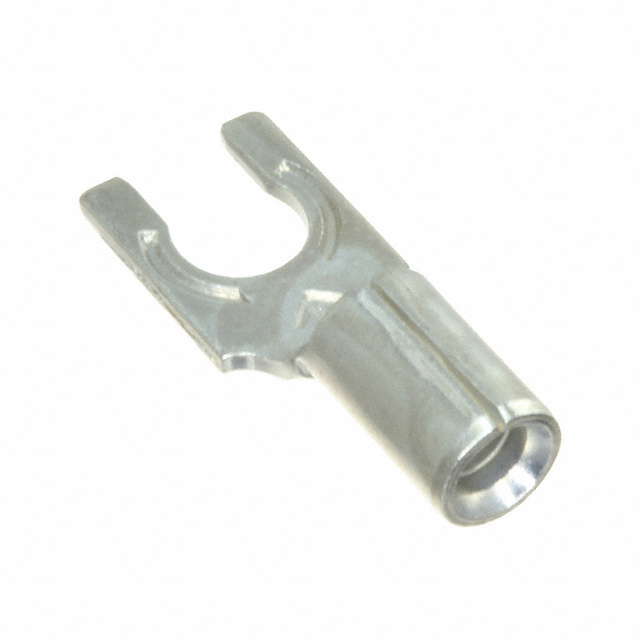

16-14 AWG NON-INSULATED BUTTED SEAM LOCKING FORK TERMINAL

Search across all available documentation for this part.

Active

16-14 AWG NON-INSULATED BUTTED SEAM LOCKING FORK TERMINAL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Stud Spade Terminal Connector Crimp 14-16 AWG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SS-32-6	SS-32 Series

Color	-	Blue
Contact Finish	-	AuCoNiP
Features	Butted Seam	Butted Seam
Insulation	Non-Insulated	Non-Insulated, Insulated
Length - Overall	-	0.9 in
Length - Overall	-	22.86 mm
Length - Overall [x]	17.27 mm	17.27 - 22.61 mm
Length - Overall [x]	0.68 in	0.68 - 0.89 in
Length - Ring Center to Termination	-	0.4 in
Length - Ring Center to Termination	-	10.16 mm
Length - Ring Center to Termination [x]	0.25 in	0.25 in
Length - Ring Center to Termination [x]	6.35 mm	6.35 mm
Length - Termination	6.35 mm	6.35 mm
Length - Termination	-	11.43 mm
Length - Termination	-	11.68 mm
Length - Termination	-	0.46 in
Length - Termination [x]	0.25 "	0.25 - 0.45 "
Material - Insulation	-	Vinyl, Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	6 Stud	0.25 - 10 Stud
Terminal Type	Snap, Spring	Snap, Spring
Termination	Crimp	Crimp
Width - Outer Edges [y]	0.25 "	0.25 - 0.43 "
Width - Outer Edges [y]	6.35 mm	6.35 - 10.92 mm

16-14 AWG NON-INSULATED BUTTED SEAM LOCKING FORK TERMINAL

Part	Length - Overall	Length - Overall	Mounting Type	Terminal Type	Insulation	Stud/Tab Size	Length - Ring Center to Termination	Length - Ring Center to Termination	Features	Length - Termination	Length - Termination [x]	Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Material - Insulation	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Color	Length - Overall [x]	Length - Overall [x]	Length - Termination [custom]	Length - Termination [custom]	Contact Finish
3M SS-32-14	0.9 in	22.86 mm	Free Hanging (In-Line)	Snap, Spring	Non-Insulated	0.25 Stud	0.4 in	10.16 mm	Butted Seam	6.35 mm	0.25 "	Crimp	0.43 "	10.92 mm
3M SS-32-4-P			Free Hanging (In-Line)	Snap, Spring	Insulated	4 Stud			Butted Seam		0.45 in	Crimp	0.25 "	6.35 mm	Vinyl	11.43 mm	0.25 in	6.35 mm	Blue	0.88 in	22.35 mm
3M SS-32-6			Free Hanging (In-Line)	Snap, Spring	Non-Insulated	6 Stud			Butted Seam	6.35 mm	0.25 "	Crimp	0.25 "	6.35 mm			0.25 in	6.35 mm		0.68 in	17.27 mm
3M SS-32-4-NB			Free Hanging (In-Line)	Snap, Spring	Insulated	4 Stud						Crimp	0.25 "	6.35 mm	Nylon, Polyamide (PA)		0.25 in	6.35 mm	Blue	0.89 in	22.61 mm	11.68 mm	0.46 in	AuCoNiP
3M SS-32-10			Free Hanging (In-Line)	Snap, Spring	Non-Insulated	10 Stud			Butted Seam	6.35 mm	0.25 "	Crimp	0.32 in	8.13 mm			0.25 in	6.35 mm		0.68 in	17.27 mm
