MS453-10C
ActiveMasach Tech Ltd.

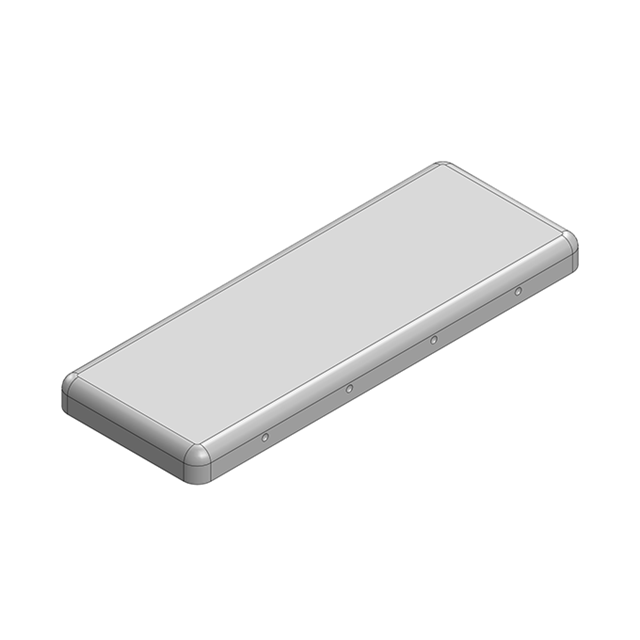

45.9 X 16.8 X 2.9MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD COVER (CRS); MATERIAL: TIN-STEEL (CRS); PACKAGE TYPE: TRAY
Deep-Dive with AI
Search across all available documentation for this part.
MS453-10C
ActiveMasach Tech Ltd.
45.9 X 16.8 X 2.9MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD COVER (CRS); MATERIAL: TIN-STEEL (CRS); PACKAGE TYPE: TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS453-10C |
|---|---|
| Height - Overall [z] | 2.9 mm |
| Height - Overall [z] | 0.114 in |
| Length - Overall [x] | 1.807 in |
| Length - Overall [x] | 45.9 mm |
| Mounting Type | Snap Fit |
| Type | Cover |
| Ventilation | Non-Vented |
| Width - Overall [x] | 0.661 " |
| Width - Overall [x] | 16.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.31 | |
| 10 | $ 1.45 | |||
| 48 | $ 1.09 | |||
| 96 | $ 0.97 | |||
| 240 | $ 0.84 | |||
| 480 | $ 0.77 | |||
| 960 | $ 0.70 | |||
| 2400 | $ 0.63 | |||
| 4944 | $ 0.60 | |||
Description
General part information
MS453 Series
RF Shield Cover 0.661" (16.80mm) X 1.807" (45.90mm) Non-Vented Snap Fit
