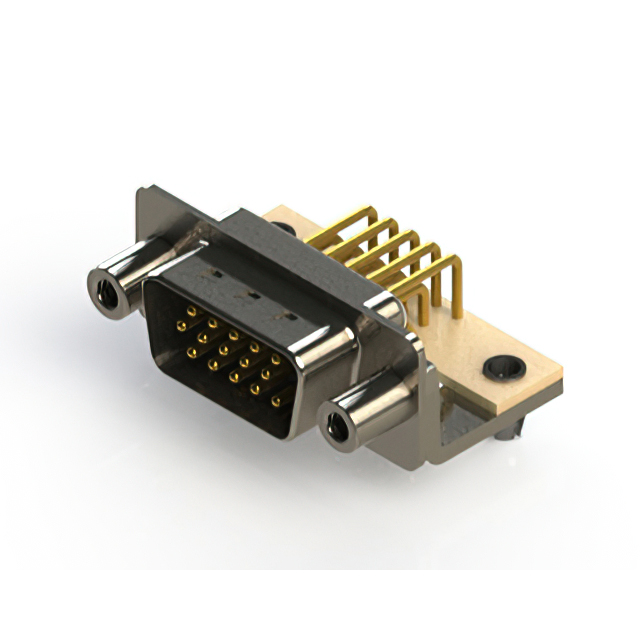

633-M15-363-WT5

Active

EDAC Inc.

HIGH DENSITY D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

633-M15-363-WT5

Active

EDAC Inc.

HIGH DENSITY D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	633-M15-363-WT5

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	White
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

633-M15 Series

Part	Dielectric Material	Features	Number of Positions	Flange Feature	Number of Rows	Connector Type	Contact Finish Thickness	Material Flammability Rating	Backset Spacing	Backset Spacing	Contact Type	Contact Finish	Connector Style	Shell Material, Finish	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 633-M15-263-WN3	Polyamide (PA6T) Nylon 6T	Board Lock Grounding Indents Shielded	15	Housing/Shell (4-40)	3	Male Pins Plug	Flash	UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density	Nickel Plated Steel	5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	White	Solder	Copper Alloy
EDAC Inc. 633-M15-663-BN5	Polyamide (PA6T) Nylon 6T	Grounding Indents Shielded	15	4-40	3	Male Pins Plug		UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density	Nickel Plated Steel	5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	Black	Solder	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 633-M15-263-BN5	Polyamide (PA6T) Nylon 6T	Grounding Indents Shielded	15	4-40	3	Male Pins Plug	Flash	UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density	Nickel Plated Steel	5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	Black	Solder	Copper Alloy
EDAC Inc. 633-M15-663-WT4	Polyamide (PA6T) Nylon 6T	Grounding Indents Shielded	15	Housing/Shell (4-40)	3	Male Pins Plug		UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density		5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	White	Solder	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 633-M15-363-WT3	Polyamide (PA6T) Nylon 6T	Board Lock Grounding Indents Shielded	15	Housing/Shell (4-40)	3	Male Pins Plug		UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density		5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	White	Solder	Copper Alloy	0.38 µm	15 µin
EDAC Inc. 633-M15-363-WT5	Polyamide (PA6T) Nylon 6T	Grounding Indents Shielded	15	4-40	3	Male Pins Plug		UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density		5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	White	Solder	Copper Alloy	0.38 µm	15 µin
EDAC Inc. 633-M15-663-BN6	Polyamide (PA6T) Nylon 6T	Grounding Indents Shielded	15	4-40 Board Side	3	Male Pins Plug		UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density	Nickel Plated Steel	5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	Black	Solder	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 633-M15-663-BN2	Polyamide (PA6T) Nylon 6T	Grounding Indents Shielded	15	Housing/Shell (4-40)	3	Male Pins Plug		UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density	Nickel Plated Steel	5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	Black	Solder	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 633-M15-363-WT4	Polyamide (PA6T) Nylon 6T	Grounding Indents Shielded	15	Housing/Shell (4-40)	3	Male Pins Plug		UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density		5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	White	Solder	Copper Alloy	0.38 µm	15 µin
EDAC Inc. 633-M15-663-WN4	Polyamide (PA6T) Nylon 6T	Grounding Indents Shielded	15	Housing/Shell (4-40)	3	Male Pins Plug		UL94 V-0	8.89 mm	0.35 in	Signal	Gold	D-Sub High Density	Nickel Plated Steel	5 A	Board Edge Right Angle Through Hole	-55 °C	125 °C	DE E	1	High Density	White	Solder	Copper Alloy	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 8.59
Newark	Each	250	$ 14.26
		500	$ 13.47

Description

General part information

633-M15 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
