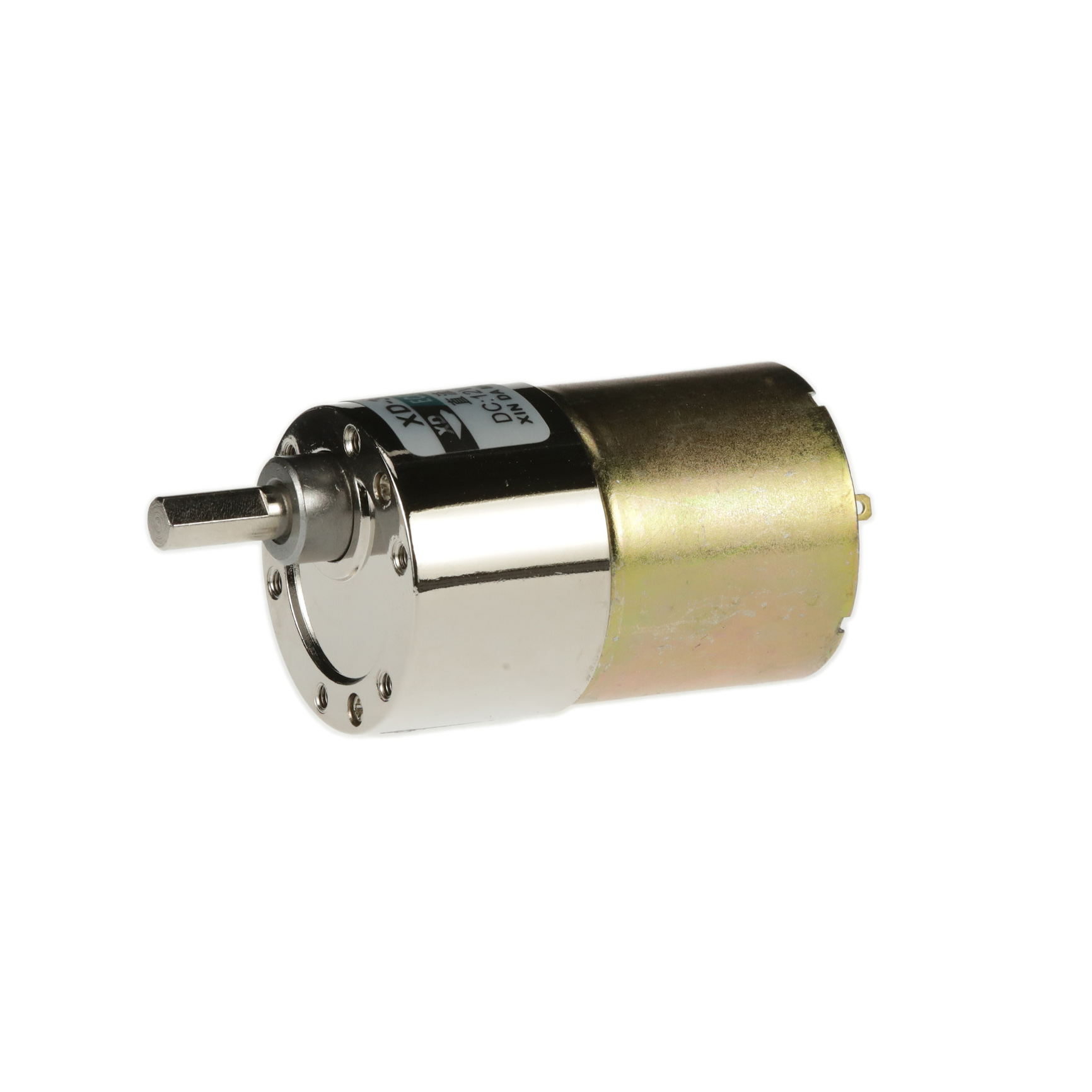

FIT0492-B

Active

DFRobot

GEARMOTOR 100 RPM 12V METAL

Search across all available documentation for this part.

Active

DFRobot

GEARMOTOR 100 RPM 12V METAL

Technical Specifications

Parameters and characteristics commom to parts in this series

GEARMOTOR 100 RPM 12V METAL

Part	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Hole Spacing	Mounting Hole Spacing	Voltage - Rated	Type	Weight	Weight	Termination Style	RPM	Power - Rated	Size / Dimension	Size / Dimension [diameter]	Size / Dimension [diameter]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Gear Reduction Ratio
DFRobot FIT0492-B	6 mm	0.236 in	1.22 in	31 mm	12 VDC	DC Motor	210.01 g	0.463 lb	Solder Tab	100 RPM	5 W	Round	37 mm	1.457 Dia	97.21 oz-in	686.5 mNm	20 mm	0.787 in	100
DFRobot FIT0492-A	6 mm	0.236 in	1.22 in	31 mm	12 VDC	DC Motor	210.01 g	0.463 lb	Solder Tab	50 RPM	5 W	Round	37 mm	1.457 Dia	125 oz-in	883 mNm	20 mm	0.787 in	100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.90

General part information

DC Motor Gearmotor 100 RPM 5W 12VDC
