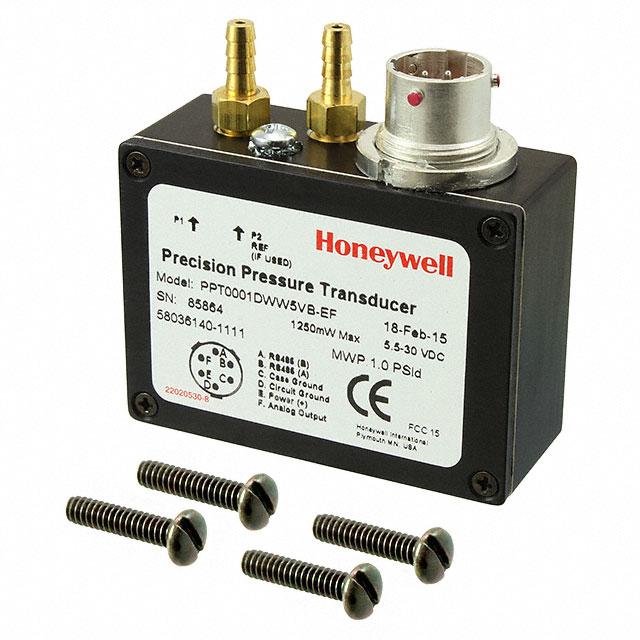

PPT0001DWW5VB-EF

Active

HONEYWELL / SENSOTEC

PRESSURE TRANSDUCER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPT0001DWW5VB-EF

Active

HONEYWELL / SENSOTEC

PRESSURE TRANSDUCER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPT0001DWW5VB-EF

Accuracy	0.05 %
Applications	Industrial Automation
Maximum Pressure	3 PSI
Maximum Pressure	20.68 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	5 V
Output [Min]	0 mV
Output Type	Analog, RS-485
Package / Case	Module Cube
Port Size	Tube, Male, Dual
Port Size [x]	0.13 "
Port Size [x]	3.18 mm
Port Style	Barbed
Pressure Type	Differential
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	5.5 V

PPT0001 Series

...

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Port Size	Operating Pressure	Operating Pressure	Applications	Pressure Type	Termination Style	Accuracy	Package / Case	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure	Maximum Pressure	Output [Max]	Port Size	Port Size	Port Size [x]	Port Size [x]	Port Size [custom]	Port Size [custom]	Port Size [custom]	Port Size [custom]
HONEYWELL / SENSOTEC PPT0001GFF5VA	5.5 V	30 VDC	Analog RS-485	Filter Dual	6.89 kPa	1 PSI	Industrial Automation	Vented Gauge	Connector	0.05 %	Module Cube	Filtered	85 °C	-40 °C	20.68 kPa	3 PSI	5 V
HONEYWELL / SENSOTEC PPT0001DXX5VA	5.5 V	30 VDC	Analog RS-485	Female			Industrial Automation	Differential	Connector	0.05 %	Module Cube	Threaded	85 °C	-40 °C	20.68 kPa	3 PSI	5 V	3.18 mm	0.125 "
HONEYWELL / SENSOTEC PPT0001GXX2VA	5.5 V	30 VDC	Analog RS-232	Female	6.89 kPa	1 PSI	Industrial Automation	Vented Gauge	Connector	0.05 %	Module Cube	Threaded	85 °C	-40 °C	20.68 kPa	3 PSI	5 V	3.18 mm	0.125 "
HONEYWELL / SENSOTEC PPT0001GWR5VB	5.5 V	30 VDC	Analog RS-485	Dual Male Tube	6.89 kPa	1 PSI	Industrial Automation	Vented Gauge	Connector	0.05 %	Module Cube	Barbed	85 °C	-40 °C	20.68 kPa	3 PSI	5 V			0.13 "	3.18 mm
HONEYWELL / SENSOTEC PPT0001GXW5VA	5.5 V	30 VDC	Analog RS-485		6.89 kPa	1 PSI	Industrial Automation	Vented Gauge	Connector	0.05 %	Module Cube		85 °C	-40 °C	20.68 kPa	3 PSI	5 V					3.18 mm	0.125 "	3.18 mm	0.13 "
HONEYWELL / SENSOTEC PPT0001GFX2VA	5.5 V	30 VDC	Analog RS-232	Female	6.89 kPa	1 PSI	Industrial Automation	Vented Gauge	Connector	0.05 %	Module Cube	Filtered Threaded	85 °C	-40 °C	20.68 kPa	3 PSI	5 V			0.125 "	3.18 mm
HONEYWELL / SENSOTEC PPT0001DWW2VB-BE	5.5 V	30 VDC	Analog RS-232	Dual Male Tube				Differential	Connector	0.12 %	Module Cube	Barbed	85 °C	-40 °C	20.68 kPa	3 PSI	5 V			0.13 "	3.18 mm
HONEYWELL / SENSOTEC PPT0001GFW5VB	5.5 V	30 VDC	Analog RS-485	Male	6.89 kPa	1 PSI	Industrial Automation	Vented Gauge	Connector	0.05 %	Module Cube	Barbed Filtered	85 °C	-40 °C	20.68 kPa	3 PSI	5 V	0.13 " 3.18 mm
HONEYWELL / SENSOTEC PPT0001DFX5VB	5.5 V	30 VDC	Analog RS-485	Female			Industrial Automation	Differential	Connector	0.05 %	Module Cube	Filtered Threaded	85 °C	-40 °C	20.68 kPa	3 PSI	5 V			0.125 "	3.18 mm
HONEYWELL / SENSOTEC PPT0001GFX2VB	5.5 V	30 VDC	Analog RS-232	Female	6.89 kPa	1 PSI	Industrial Automation	Vented Gauge	Connector	0.05 %	Module Cube	Filtered Threaded	85 °C	-40 °C	20.68 kPa	3 PSI	5 V			0.125 "	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PPT0001 Series

PRESSURE TRANSDUCER

Documents

Technical documentation and resources
