1061270510

Active

LC/UPC ADAPTER, DUPLEX, MULTIMODE, BEIGE BODY, CERAMIC ALIGNMENT SLEEVE, WITH FLANGE, SNAP AND SCREW MOUNT, METAL MOUNTING PLATE, ONE SIDE METAL SHUTTER, SC FOOTPRINT

Find alt

Alpha

1061270510

Active

Molex

LC/UPC ADAPTER, DUPLEX, MULTIMODE, BEIGE BODY, CERAMIC ALIGNMENT SLEEVE, WITH FLANGE, SNAP AND SCREW MOUNT, METAL MOUNTING PLATE, ONE SIDE METAL SHUTTER, SC FOOTPRINT

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

106127 Series

LC/UPC ADAPTER, DUPLEX, MULTIMODE, BEIGE BODY, CERAMIC ALIGNMENT SLEEVE, WITH FLANGE, SNAP AND SCREW MOUNT, METAL MOUNTING PLATE, ONE SIDE METAL SHUTTER, SC FOOTPRINT

Technical Specifications

Parameters and characteristics for this part

Specification	1061270510

Color	Beige
Convert From (Adapter End)	LC Receptacle
Convert To (Adapter End)	LC Receptacle
Features	Dust Cap, Shutter
Ferrule Material	Phosphor Bronze
Housing Material	Polymer
Mounting Type	Panel Mount, Snap-In, Flange
Simplex/Duplex	Duplex
Type	Coupler

106127 Series

Part	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Min)	Operating Temperature (Max)	Ferrule Material	Mode	Housing Material	Type	Simplex/Duplex	Convert From (Adapter End)	Features	Convert To (Adapter End)	Mounting Type	Material Flammability Rating	Color
Molex 1061270110	Dust Tight Waterproof	IP67	-40 °C	85 °C	Phosphor Bronze	Multimode	Polymer	Coupler	Duplex	LC Receptacle	Dust Cap Shutter	LC Receptacle	Flange (2 Hole) Panel Mount
Molex 1061271500			-40 °C	85 °C	Zirconia		Polymer	Coupler	Duplex	LC Receptacle	Dust Cap Shutter	LC Receptacle	Flange Panel Mount Snap-In	UL94 V-0	Blue

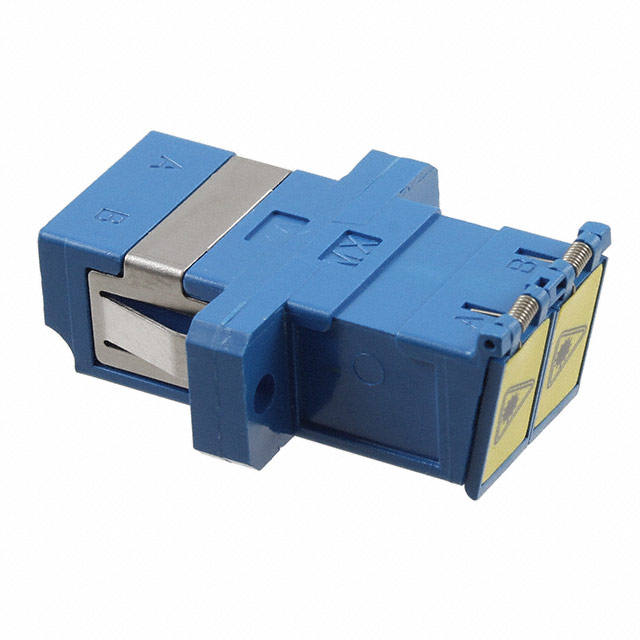

Molex 1061271300			-40 °C	85 °C	Zirconia	Multimode Singlemode	Polymer	Coupler	Duplex	LC Receptacle	Dust Cap Shutter	LC Receptacle	Flange Panel Mount Snap-In	UL94 V-0	Blue
Molex 106127-0150					Ceramic Zirconia	Multimode		Coupler	Duplex	LC Receptacle		LC Receptacle	Flange Panel Mount Snap-In		Blue
Molex 1061270310					Phosphor Bronze	Multimode	Polymer	Coupler	Duplex	LC Receptacle	Dust Cap Shutter	LC Receptacle	Flange Panel Mount Snap-In		Beige
Molex 1061271690			-40 °C	85 °C	Zirconia	Multimode Singlemode	Polymer	Coupler	Duplex	LC Receptacle	Dust Cap Shutter	LC Receptacle	Flange Panel Mount Snap-In	UL94 V-0	Silver
Molex 1061271890					Zirconia	Multimode Singlemode	Polymer	Coupler	Duplex	LC Receptacle	Dust Cap Shutter	LC Receptacle	Flange (2 Hole) Panel Mount
Molex 1061271452					Zirconia	Singlemode	Polymer	Coupler	Duplex	LC Receptacle	Angle Polished Dust Cap Shutter	LC Receptacle	Panel Mount Snap-In		Green

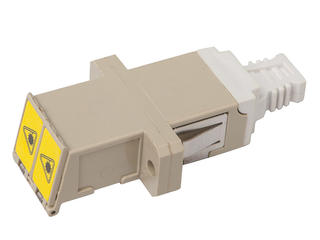

Molex 1061271350					Zirconia	Singlemode	Polymer	Coupler	Duplex	LC Receptacle	Angle Polished Dust Cap Shutter	LC Receptacle	Flange Panel Mount Snap-In		Green
Molex 1061271400					Zirconia	Singlemode	Polymer	Coupler	Duplex	LC Receptacle	Dust Cap Shutter	LC Receptacle	Flange Panel Mount Snap-In		Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1061270510 | Datasheet

Drawing
