1110-150K-RC

Active

Bourns Inc.

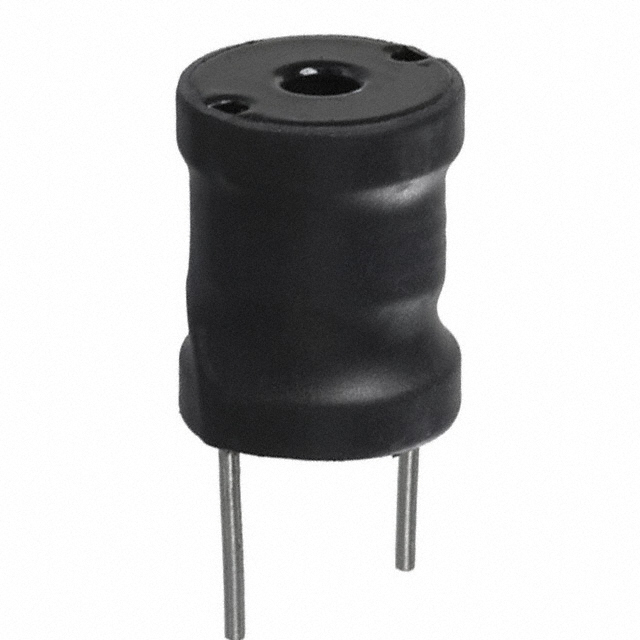

FIXED IND 15UH 7.2A 15 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1110-150K-RC

Active

Bourns Inc.

FIXED IND 15UH 7.2A 15 MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1110-150K-RC	1110 Series

Current Rating (Amps)	7.2 A	1 - 800 A
DC Resistance (DCR)	-	4 - 62 mOhm
DC Resistance (DCR) [Max]	15 mOhm	3 - 696 mOhm
Height - Seated (Max) [Max] [z]	21.34 mm	21.34 mm
Height - Seated (Max) [Max] [z]	0.84 in	0.84 in
Inductance	15 µH	1 - 560 µH
Material - Core	Ferrite	Ferrite
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Vertical Cylinder	Radial, Radial, Vertical Cylinder
Shielding	Unshielded	Unshielded
Size / Dimension [diameter]	0.66 in	0.66 in
Size / Dimension [diameter]	16.76 mm	16.76 mm
Tolerance	10 %	10 - 20 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

1110 Series

FIXED IND 27UH 4.5A 30 MOHM TH

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Inductance	Shielding	Material - Core	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	DC Resistance (DCR) [Max]	Package / Case	DC Resistance (DCR)
Bourns Inc. 1110-270K-RC	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	27 µH	Unshielded	Ferrite	Through Hole	4.5 A	21.34 mm	0.84 in	10 %	30 mOhm	Radial
Bourns Inc. 1110-470K-RC	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	47 µH	Unshielded	Ferrite	Through Hole	2.8 A	21.34 mm	0.84 in	10 %		Radial, Vertical Cylinder	62 mOhm
Bourns Inc. 1110-561K	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	560 µH	Unshielded	Ferrite	Through Hole	800 mA	21.34 mm	0.84 in	10 %	696 mOhm	Radial, Vertical Cylinder
Bourns Inc. 1110-180K-RC	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	18 µH	Unshielded	Ferrite	Through Hole	7.2 A	21.34 mm	0.84 in	10 %		Radial	16 mOhm
Bourns Inc. 1110-5R6M-RC	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	5.6 µH	Unshielded	Ferrite	Through Hole		21.34 mm	0.84 in	20 %		Radial
Bourns Inc. 1110-331K-RC	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	330 µH	Unshielded	Ferrite	Through Hole	1.3 A	21.34 mm	0.84 in	10 %	336 mOhm	Radial, Vertical Cylinder
Bourns Inc. 1110-1R0M-RC	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	1 µH	Unshielded	Ferrite	Through Hole		21.34 mm	0.84 in	20 %	3 mOhm	Radial
Bourns Inc. 1110-331K	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	330 µH	Unshielded	Ferrite	Through Hole	1.3 A	21.34 mm	0.84 in	10 %	336 mOhm	Radial, Vertical Cylinder
Bourns Inc. 1110-150K-RC	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	15 µH	Unshielded	Ferrite	Through Hole	7.2 A	21.34 mm	0.84 in	10 %	15 mOhm	Radial, Vertical Cylinder
Bourns Inc. 1110-220K-RC	Drum Core, Wirewound	105 ░C	-55 °C	0.66 in	16.76 mm	22 µH	Unshielded	Ferrite	Through Hole	5.5 Amps	21.34 mm	0.84 in	10 %		Radial, Vertical Cylinder	20 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.69
		10	$ 7.15
		298	$ 5.79
		1192	$ 5.14

Description

General part information

1110 Series

15 µH Unshielded Drum Core, Wirewound Inductor 7.2 A 15mOhm Max Radial, Vertical Cylinder
