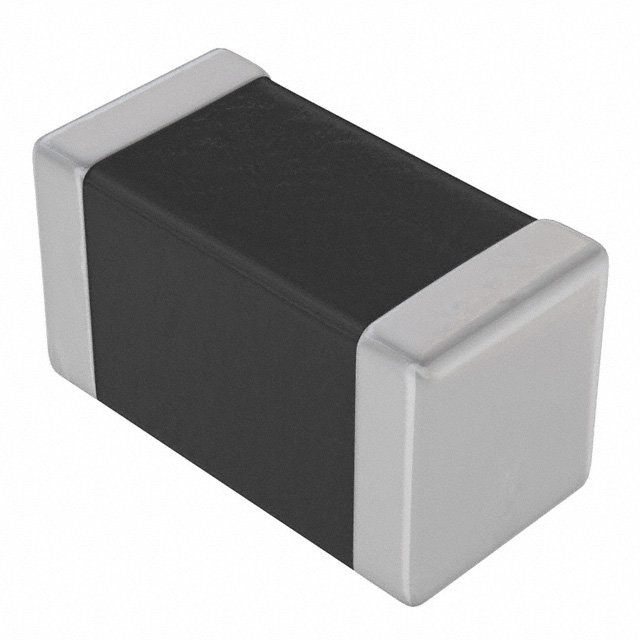

VTA7060318A400DP
ActiveKyocera AVX
TVS, HI-TEMP. 175 C, 0603 EIA, 1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VTA7060318A400DP
ActiveKyocera AVX
TVS, HI-TEMP. 175 C, 0603 EIA, 1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VTA7060318A400DP |
|---|---|
| Capacitance @ Frequency | 275 pF |
| Current - Surge | 30 A |
| Energy | 0.1 J |
| Grade | Automotive |
| Maximum AC Volts [Max] | 13 V |
| Maximum DC Volts [Max] | 18 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Package / Case | 0603 (1608 Metric) |
| Qualification | AEC-Q200 |
| Varistor Voltage (Max) [Max] | 25.3 V |
| Varistor Voltage (Min) [Min] | 20.7 V |
| Varistor Voltage (Typ) | 23 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.23 | |
| 2000 | $ 0.21 | |||
| 5000 | $ 0.20 | |||
| 10000 | $ 0.18 | |||
| 25000 | $ 0.17 | |||
| 50000 | $ 0.17 | |||
Description
General part information
VTA7060318A400DP
23 V 30 A Varistor 1 Circuit Surface Mount, MLCV 0603 (1608 Metric)
Documents
Technical documentation and resources
