Description
General part information

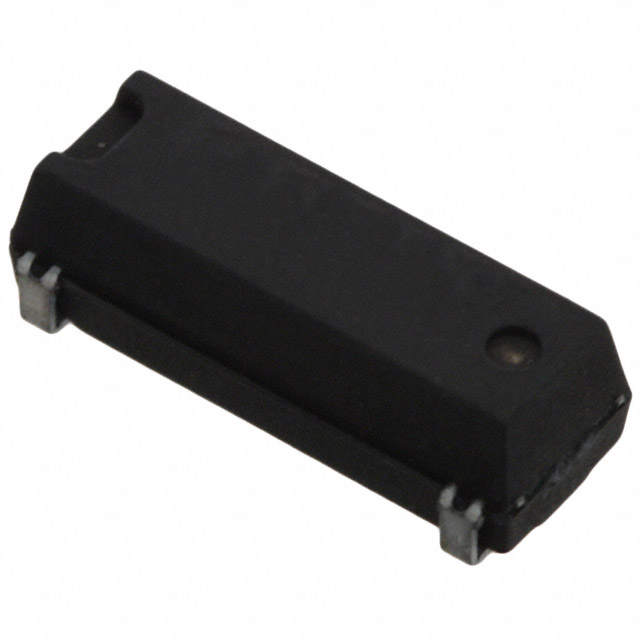

MA-406 8.0000M-D: ROHS
8 MHz ±50ppm Crystal 22pF 80 Ohms 4-SOJ, 9.60mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | MA-406 8.0000M-D: ROHS |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 8 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) | 0.146 in |
| Load Capacitance | 22 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 9.60mm pitch, 4-SOJ |
| Package Name | 4-SOJ |
| Package Pitch | 9.6 mm |
| Size / Dimension Length | 0.461 in |
| Size / Dimension Width | 0.157 in |
| Type | MHz Crystal |
