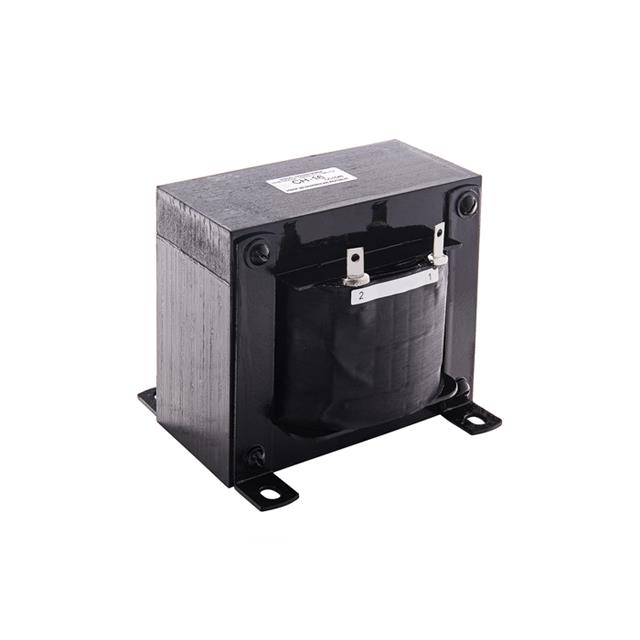

CH-16
ActiveSignal Transformer
FIXED IND 15MH 16A 80 MOHM CHASS
CH-16
ActiveSignal Transformer
FIXED IND 15MH 16A 80 MOHM CHASS
Description
General part information
CH-16
15 mH Unshielded Inductor 16 A 80mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CH-16 |
|---|---|
| Current Rating | 16 A |
| DC Resistance (DCR) | 80 mOhm |
| Height - Seated (Max) | 4.437 in |
| Inductance | 15 mH |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 5.252 in |
| Size / Dimension Width | 4.626 in |
