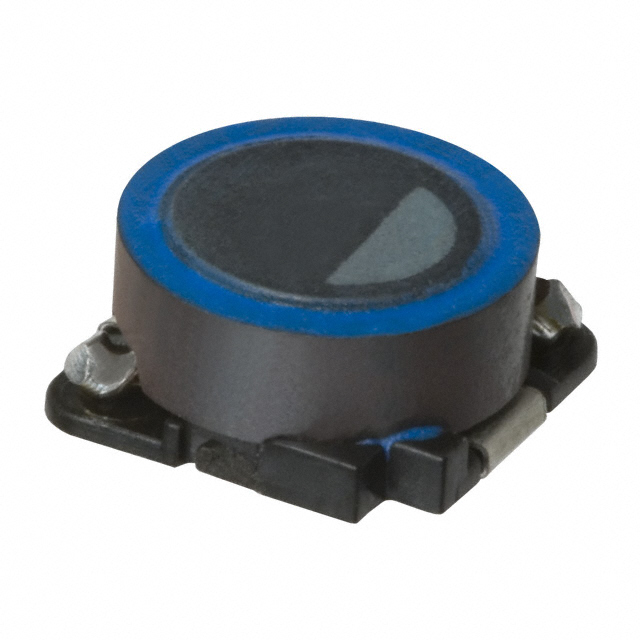

SLF7032T-102MR13-2PF
LTBTDK Corporation
FIXED IND 1MH 130MA 5.736OHM SMD
SLF7032T-102MR13-2PF
LTBTDK Corporation
FIXED IND 1MH 130MA 5.736OHM SMD
Description
General part information
SLF7032T-102MR13-2PF
1 mH Shielded Drum Core, Wirewound Inductor 130 mA 5.736Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SLF7032T-102MR13-2PF |
|---|---|
| Current Rating | 0.13 A |
| DC Resistance (DCR) (Max) | 5.736 Ohm |
| Height - Seated (Max) | 0.134 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
