9ADW1601H5T02
ActiveSanyo Denki America Inc.
100V TO 240V, SPLASH PROOF, TERM
9ADW1601H5T02
ActiveSanyo Denki America Inc.
100V TO 240V, SPLASH PROOF, TERM
Description
General part information
9ADW1601H5T02

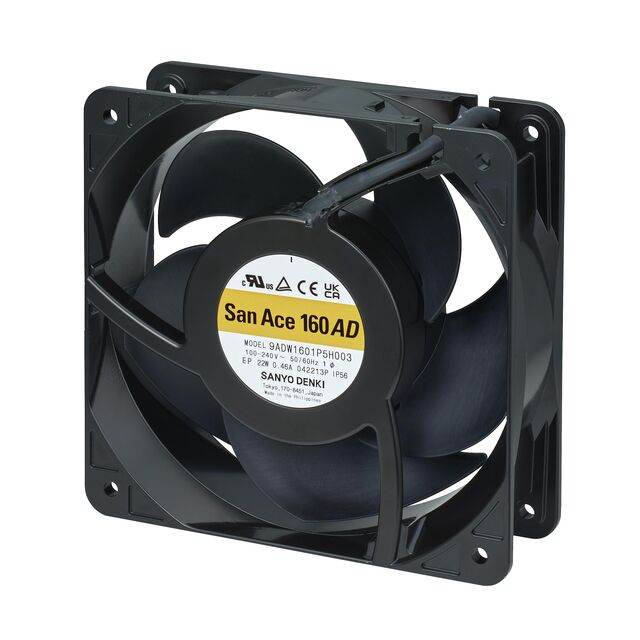

Fan Tubeaxial 100 ~ 240VAC Square - 160mm L x 160mm H Ball 4 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 9ADW1601H5T02 |
|---|---|
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | PWM Control, Locked Rotor Protection, Speed Sensor (Tach) |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP56 |
| Lifetime | Varies Based on Temperature |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Size / Dimension Height | 160 mm |
| Size / Dimension Length | 160 mm |
| Size / Dimension Shape | Square |
| Termination | 4 Wire Leads |
| Termination Leads Count | 4 leads |
| Termination Type | Wire Leads |
| Voltage - Rated (Max) | 240 VAC |
| Voltage - Rated (Min) | 100 V |
| Voltage Range (Max) | 264 V |
| Voltage Range (Min) | 90 VAC |
| Width | 51 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
