Description
General part information

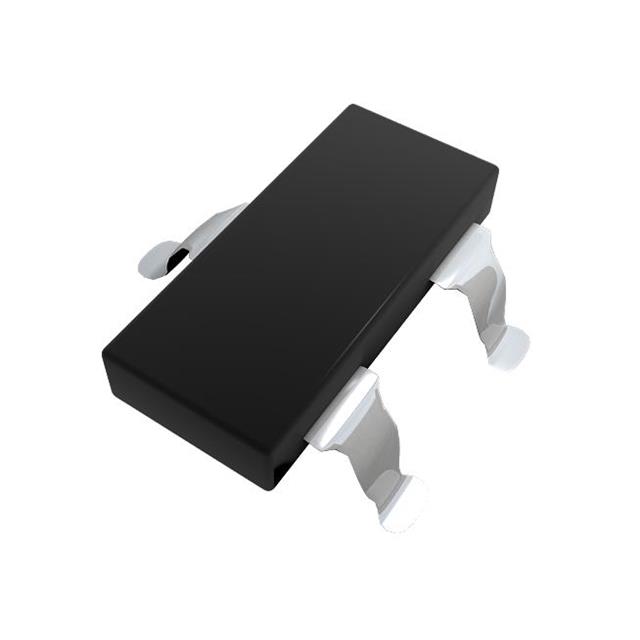

AZ4024-02S
Clamp Ipp Tvs Diode Surface Mount SOT23-3L
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ4024-02S |
|---|---|
| Applications | General |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-236-3, SOT-23-3, SC-59 |
| Package Name | SOT23-3L |
| Power Line Protection | No |
| Type | Zener |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 26.7 V |
| Voltage - Reverse Standoff (Max) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
