Specification	HDTF-6-08-S-RA-LC-100

Color	Black
Connector Style	XCede®
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	50 µin
Mounting Type	Through Hole, Right Angle
Number of Columns	8
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	12
Pitch	0.071 in
Termination	Press-Fit

HDTF Series

Part	Mounting Type	Number of Positions Loaded	Number of Columns	Color	Pitch	Number of Positions	Termination	Contact Finish	Connector Type	Connector Usage	Contact Finish Thickness	Connector Style	Operating Temperature (Min)	Operating Temperature (Max)	Differential Pairs (Typical)	Voltage Rating	Number of Rows
Samtec Inc. HDTF-3-08-S-RA-HS-100	Board Edge Right Angle Through Hole	All	8	Black	0.071 in	48	Press-Fit	Gold	Female Sockets Receptacle	Backplane	30 µin	XCede®
Samtec Inc. HDTF-4-08-S-RA-LC-100	Right Angle Through Hole	All	8	Black	0.071 in	64	Press-Fit	Gold	Female Sockets Receptacle	Backplane	50 µin	XCede®

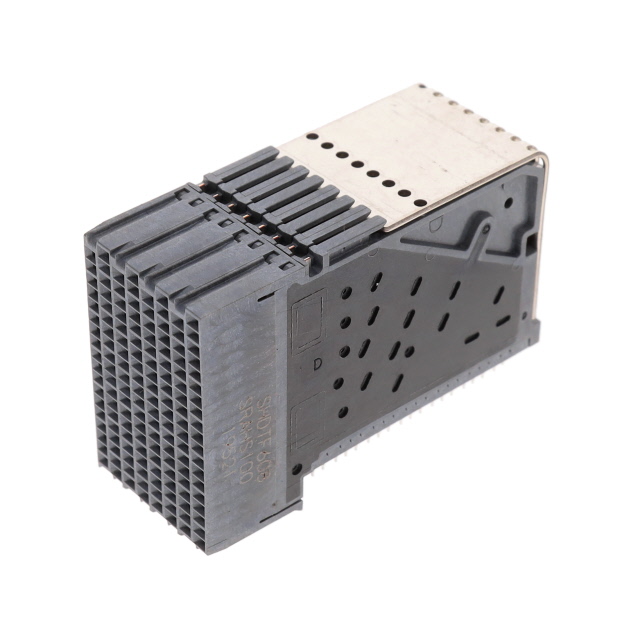

Samtec Inc. HDTF-6-08-S-RA-HS-100	Board Edge Right Angle Through Hole	All	8	Black	0.071 in	96	Press-Fit	Gold	Female Sockets Receptacle	Backplane	30 µin	XCede®	-40 °C	105 °C
Samtec Inc. HDTF-4-08-S-RA-HS-100	Board Edge Right Angle Through Hole	All	8	Black	0.071 in	64	Press-Fit	Gold	Female Sockets Receptacle	Backplane	30 µin	XCede®	-40 °C	105 °C	32
Samtec Inc. HDTF-3-04-S-RA-HS-100	Right Angle Through Hole	All	4	Black	0.071 in	24 pos	Press-Fit	Gold	Female Sockets Receptacle	Backplane	50 µin	XCede®	-40 °C	105 °C		48 V	6
Samtec Inc. HDTF-6-04-S-RA-LC-100	Right Angle Through Hole	All	4	Black	0.071 in	48	Press-Fit	Gold	Female Sockets Receptacle	Backplane	50 µin	XCede®					12
Samtec Inc. HDTF-4-04-S-RA-HS-100	Right Angle Through Hole	All	4	Black	0.071 in	32	Press-Fit	Gold	Female Sockets Receptacle	Backplane	50 µin	XCede®	-40 °C	105 °C		48 V	8

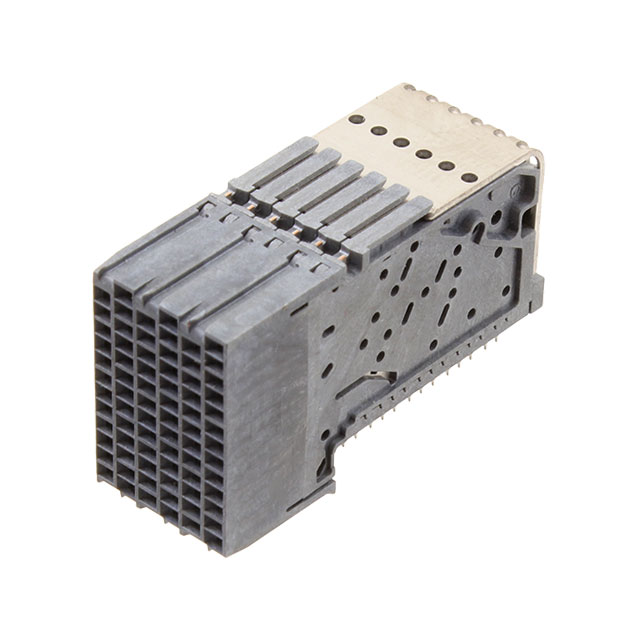

Samtec Inc. HDTF-4-06-S-RA-LC-100	Board Edge Right Angle Through Hole	All	6			48	Press-Fit	Gold	Female Sockets Receptacle	Backplane	30 µin	XCede®	-40 °C	105 °C
Samtec Inc. HDTF-3-04-S-RA-LC-100	Right Angle Through Hole	All	4	Black	0.071 in	24 pos	Press-Fit	Gold	Female Sockets Receptacle	Backplane	50 µin	XCede®	-40 °C	105 °C		48 V	6
Samtec Inc. HDTF-4-06-S-RA-HS-100	Right Angle Through Hole	All	6	Black	0.071 in	48	Press-Fit	Gold	Female Sockets Receptacle	Backplane	50 µin	XCede®	-40 °C	105 °C		48 V	8
