10169063-5602100LF
ActiveAmphenol ICC (FCI)

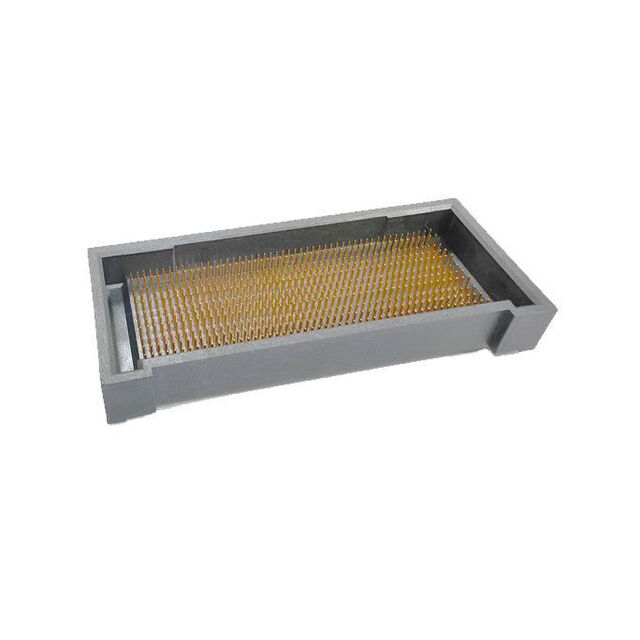

DENSISTAK HEADER, H2, 0.80MM X 1
10169063-5602100LF
ActiveAmphenol ICC (FCI)
DENSISTAK HEADER, H2, 0.80MM X 1
Description
General part information
10169063-5602100LF
616 Position Connector Header, Center Strip Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 10169063-5602100LF |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 µin |
| Features | Solder Retention, Pick and Place, Board Guide |
| Height Above Board | 0.276 in |
| Mated Stacking Height | 8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 616 |
| Number of Rows | 11 |
| Pitch | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
