HG3G-8JT22MF-B

Obsolete

IDEC Corporation

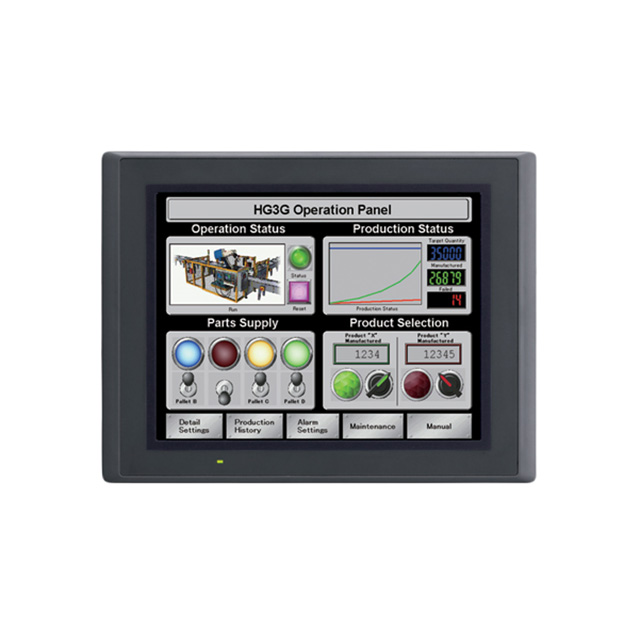

HMI TOUCHSCREEN 8.4" COLOR

Search across all available documentation for this part.

Obsolete

IDEC Corporation

HMI TOUCHSCREEN 8.4" COLOR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HG3G-8JT22MF-B	HG3G Series

Case Color	Black	Gray, Black
Display Type	Color	Color
Features	Expansion Interface, Memory Card Interface	Expansion Interface, Memory Card Interface
For Use With/Related Products	Multiple Manufacturer, Multiple Product	Multiple Manufacturer, Multiple Product
Ingress Protection	IP66	IP66
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Size - Display	8.4 in	8.4 - 10.4 in
Type	Touchscreen	Touchscreen
Voltage - Supply	24 VDC	24 VDC

HMI TOUCHSCREEN 8.4" COLOR

Part	For Use With/Related Products	Voltage - Supply	Size - Display	Type	Ingress Protection	Features	Display Type	Operating Temperature [Min]	Operating Temperature [Max]	Case Color
IDEC Corporation HG3G-8JT22MF-W	Multiple Manufacturer, Multiple Product	24 VDC	8.4 in	Touchscreen	IP66	Expansion Interface, Memory Card Interface	Color	-20 C	60 °C	Gray
IDEC Corporation HG3G-AJT22MF-B	Multiple Manufacturer, Multiple Product	24 VDC	10.4 in	Touchscreen	IP66	Expansion Interface, Memory Card Interface	Color	-20 C	60 °C	Black
IDEC Corporation HG3G-8JT22MF-B	Multiple Manufacturer, Multiple Product	24 VDC	8.4 in	Touchscreen	IP66	Expansion Interface, Memory Card Interface	Color	-20 C	60 °C	Black
IDEC Corporation HG3G-AJT22TF-B	Multiple Manufacturer, Multiple Product	24 VDC	10.4 in	Touchscreen	IP66	Expansion Interface, Memory Card Interface	Color	-20 C	60 °C	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Human Machine Interface (HMI) Touchscreen 8.4" Color
