171-025-202L021
ObsoleteMH Connectors

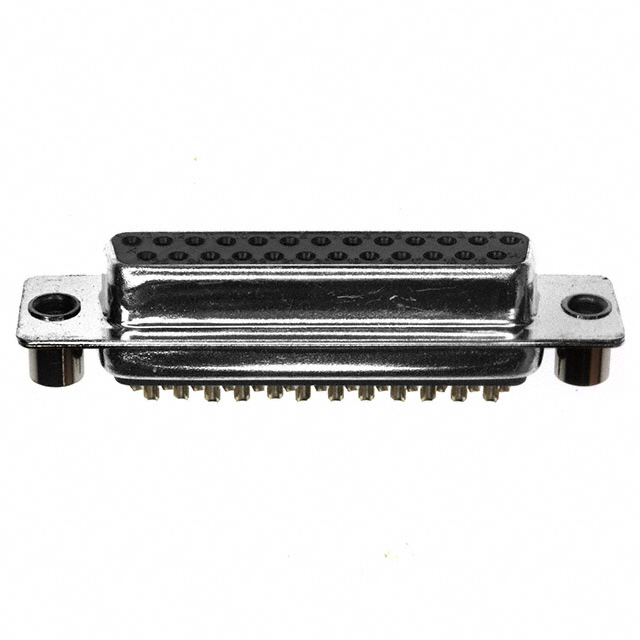

CONN D-SUB RCPT 25POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
171-025-202L021
ObsoleteMH Connectors
CONN D-SUB RCPT 25POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 171-025-202L021 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Cable Side |
| Material Flammability Rating | UL94 V-0 |
| Number of Rows | 2 |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
171-025-202L021
25 Position D-Sub Receptacle, Female Sockets Connector
