Description
General part information

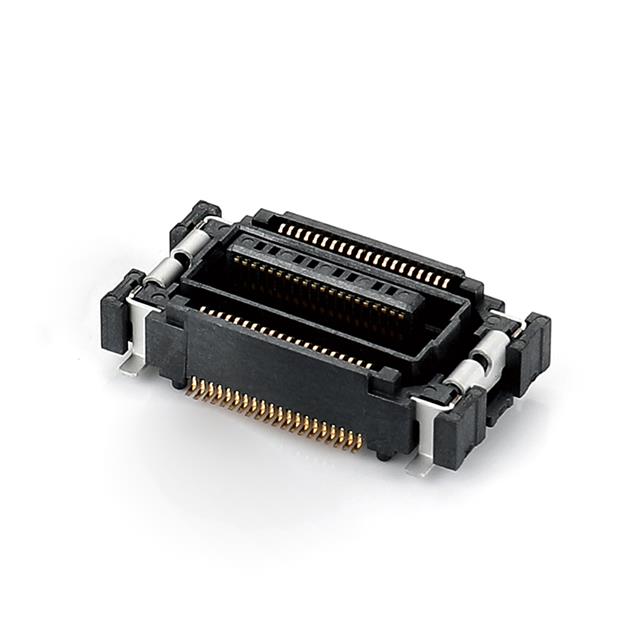

GBAC229-2002B001C1NF
40 Position Connector Receptacle, Floating Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | GBAC229-2002B001C1NF |
|---|---|
| Connector Type | Floating, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Features | Solder Retention, Pick and Place, Board Guide |
| Height Above Board | 0.23 in |
| Mated Stacking Height | 7.65 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch | 0.02 in |
