FMWGS6027
ActiveFairview Microwave

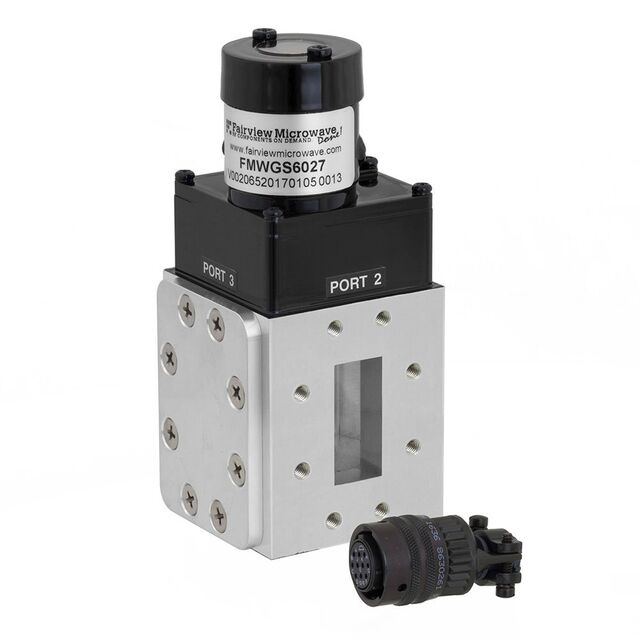

WG EM RELAY SWITCH WR-137 8.2 GH
FMWGS6027
ActiveFairview Microwave
WG EM RELAY SWITCH WR-137 8.2 GH
Description
General part information
FMWGS6027
RF Switch IC Radar, VSAT SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWGS6027 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 8.2 GHz |
| Frequency Range (Min) | 5.85 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.012 dB |
| Isolation | 105 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | VSAT, Radar |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 20 V |
| Voltage - Supply (Minimum) | 10 VDC |
