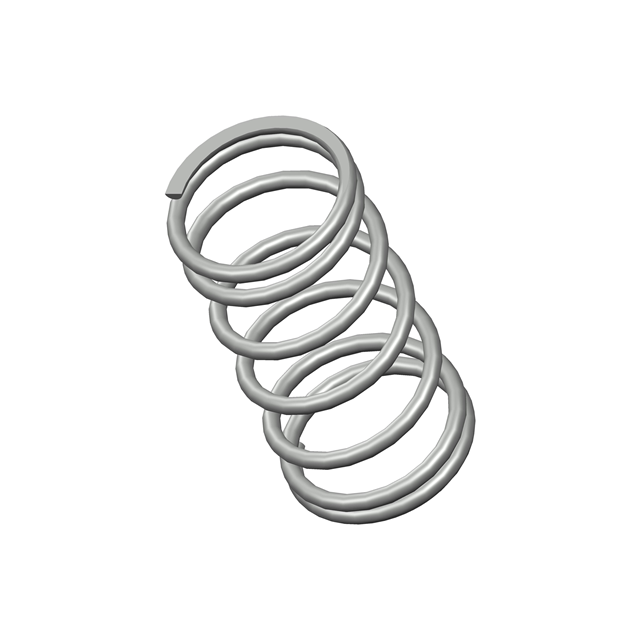

12112CS
ActiveCentury Spring Corp
COMP O=1.343,L= 2.69,W= .120
12112CS
ActiveCentury Spring Corp
COMP O=1.343,L= 2.69,W= .120
Description
General part information
12112CS
COMP O=1.343,L= 2.69,W= .120
Technical Specifications
Parameters and characteristics for this part
| Specification | 12112CS |
|---|---|
| Diameter - Inside | 1.103 in |
| Diameter - Outside | 1.343 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 2.69 in |
| Material | Spring Steel |
| Rate (lbs/in) | 33 lbs/in |
| Type | Compression |
| Wire Diameter | 0.12 in |
