2794699
ObsoletePhoenix Contact

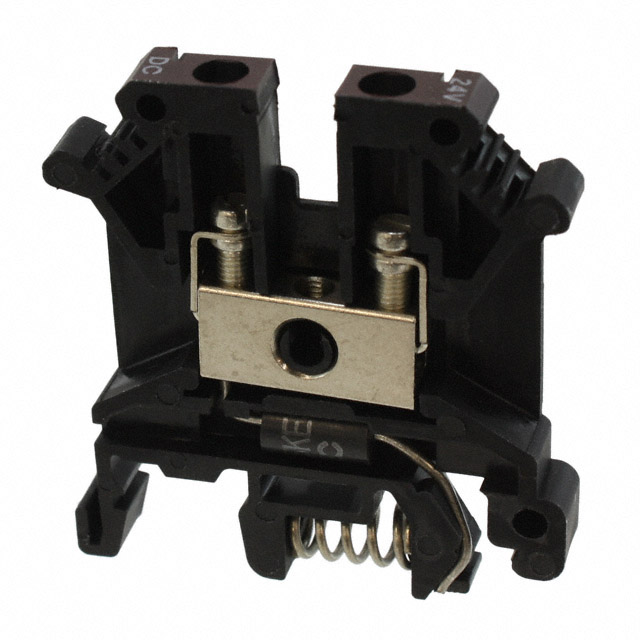

CONN TERM BLK FEED THRU 10-26AWG
2794699
ObsoletePhoenix Contact
CONN TERM BLK FEED THRU 10-26AWG
Description
General part information
2794699
Terminal Block Connector 2 Position Feed Through Black 10-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2794699 |
|---|---|
| Color | Black |
| Current - UL | 30 A |
| Features | Diode |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-2 |
| Number of Levels | 1 |
| Number of Levels (Connection) | Grounded |
| Number of Positions | 2 |
| Stripping Length | 8 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - UL | 24 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
