Description

General part information

1092Q Series

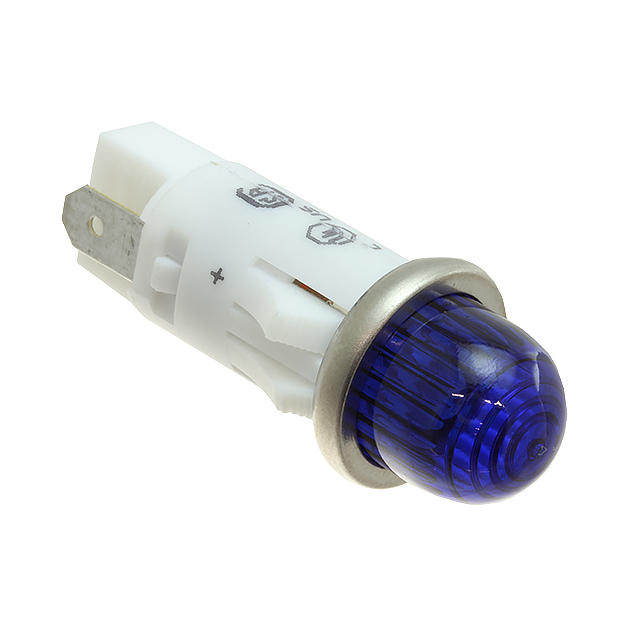

LED Panel Indicator Blue Clear 12V 25mA Quick Connect - 0.187" (4.7mm)

Technical Specifications

Parameters and characteristics for this part

Specification1092QA6-12V
Current25 mA
Lamp ColorBlue
Lens ColorBlue
Lens StyleRound, Domed Top
Lens TransparencyClear
Millicandela Rating3200 mcd
Panel Cutout Dimension0.5 "
Panel Cutout ShapeRound
Quick Connect Size (0.187")0.187 in
RatingsDC
Termination StyleQuick Connect
TypeLED
Voltage12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1092 Series Blue Flyer
1092QA6-12V | Datasheet
