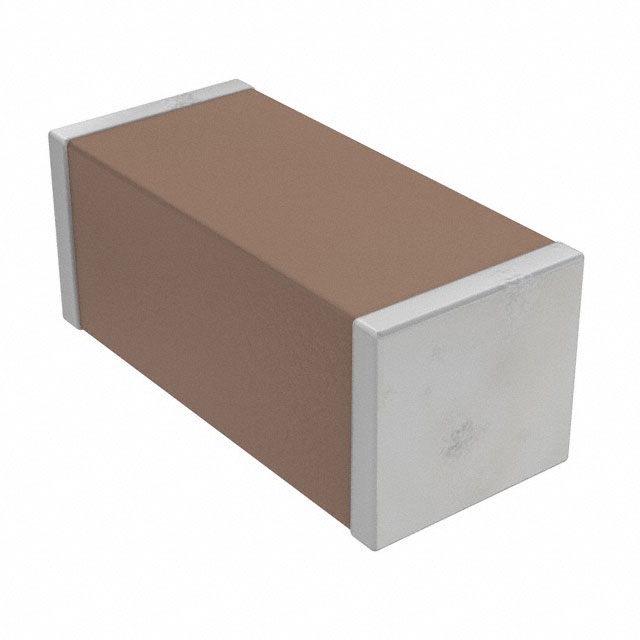

CGA Series 1808 (4520 Metric) 1.8

CGA7M1C0G3F560K200KA

LTB
TDK Corporation

CAP CER 56PF 3KV C0G 1808

Find alt
CGA Series 1808 (4520 Metric) 1.8

CGA7M1C0G3F560K200KA

LTB
TDK Corporation

CAP CER 56PF 3KV C0G 1808

Find alt

Description

General part information

CGA7M1C0G3F560K200KA

56 pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric)

Technical Specifications

Parameters and characteristics for this part

SpecificationCGA7M1C0G3F560K200KA
ApplicationsAutomotive
Capacitance56 pF
FeaturesHigh Voltage
Mounting TypeSurface Mount, MLCC
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Package / Case1808 (4520 Metric)
RatingsAEC-Q200
Size / Dimension Length0.177 in
Size / Dimension Width0.079 in
Temperature CoefficientNP0, C0G
Thickness (Max)0.087 in
Tolerance10 %
Voltage - Rated3000 V
