2200263
ActivePhoenix Contact

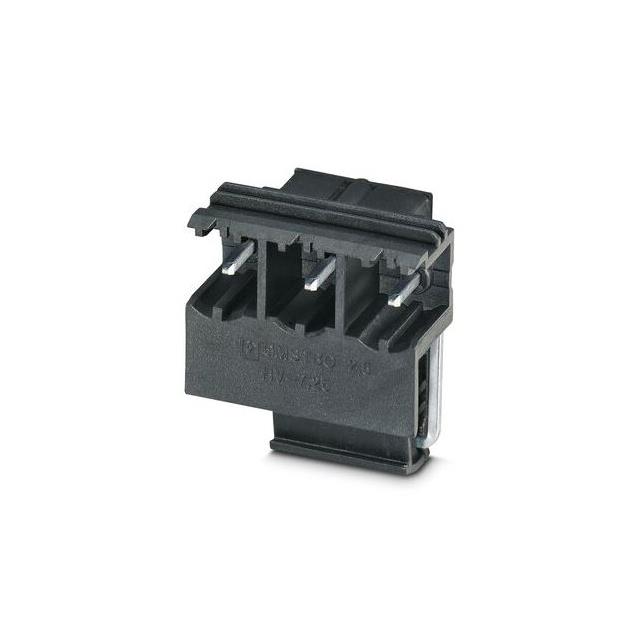

TERM BLOCK HDR 3POS 90DEG 7.25MM
2200263
ActivePhoenix Contact
TERM BLOCK HDR 3POS 90DEG 7.25MM
Description
General part information
2200263
3 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.285" (7.25mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 2200263 |
|---|---|
| Color | Black |
| Current - IEC | 16 A |
| Current - UL | 16 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Housing Material | Liquid Crystal Polymer, LCP |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Pitch | 0.285 in |
| Positions Per Level | 3 |
| Termination Style | Solder |
| Type | Male Pins, Shrouded (2 Side), Header |
| Voltage - IEC | 630 V |
| Voltage - UL | 300 V |
