IRSM516-076DA2
UnknownInfineon Technologies

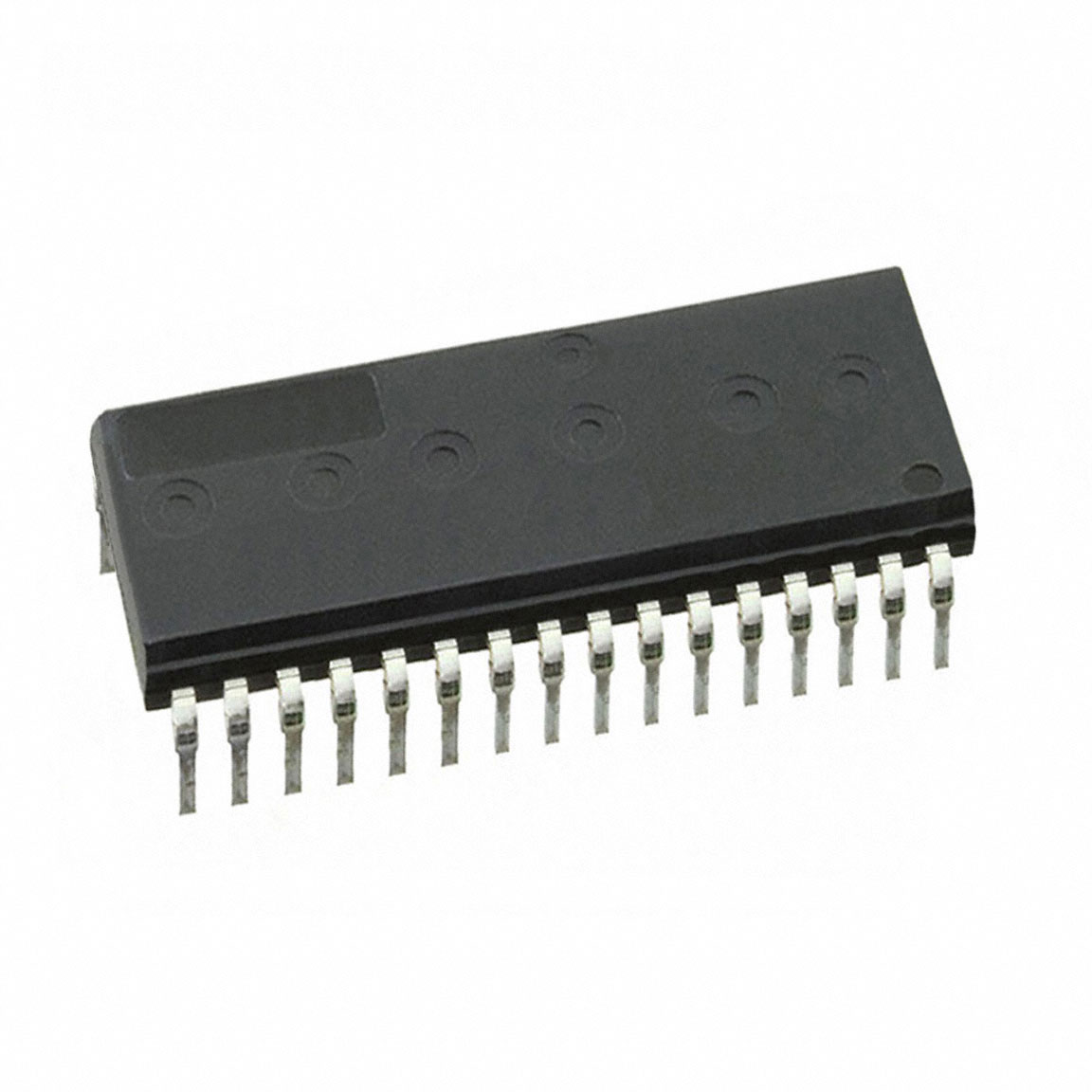

IC HALF BRIDGE DRIVER 4A 23DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IRSM516-076DA2
UnknownInfineon Technologies
IC HALF BRIDGE DRIVER 4A 23DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IRSM516-076DA2 |
|---|---|
| Applications | AC Motors |
| Current - Output / Channel | 4 A |
| Current - Peak Output | 15 A |
| Fault Protection | UVLO |
| Features | Bootstrap Circuit |
| Interface | Logic |
| Load Type | Inductive |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (3) |
| Package / Case | 23-PowerDIP Module |
| Package / Case [x] | 0.551 in |
| Package / Case [y] | 14 mm |
| Supplier Device Package | 23-DIPA |
| Technology | IGBT |
| Voltage - Load [Max] | 480 V |
| Voltage - Supply [Max] | 16.5 V |
| Voltage - Supply [Min] | 13.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IRSM516 Series
Half Bridge (3) Driver AC Motors IGBT 23-DIPA
