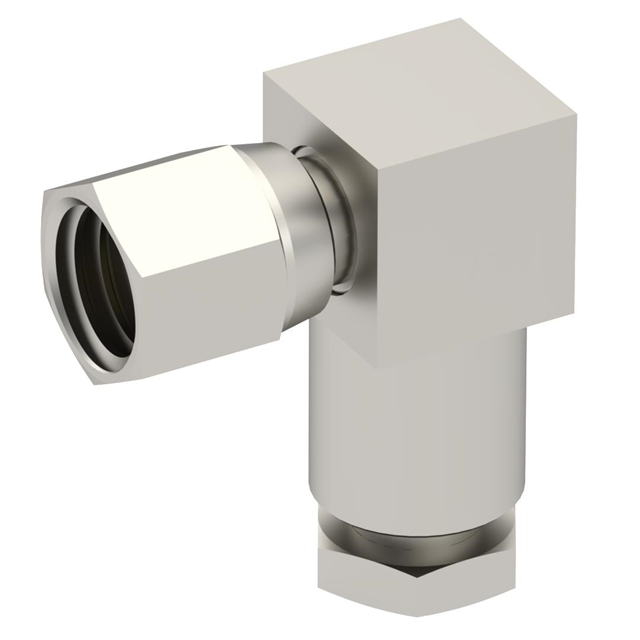

1005-7541-010

Active

Radiall USA, Inc.

SMC F RA NA SDCL .085

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F RA NA SDCL .085

Technical Specifications

Parameters and characteristics for this part

Specification	1005-7541-010

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

SMC F RA NA SDCL .085

Part	Center Contact Plating	Housing Color	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Mating Cycles	Body Finish	Number of Ports	Insertion Loss	Shield Termination	Connector Type	Contact Termination	Connector Style	Frequency - Max [Max]	Dielectric Material	Body Material	Includes	Mounting Type	Impedance
Radiall USA, Inc. 1005-7541-010	Gold	Silver	RG-405 (.085" Semi Rigid)	-65 ░C	105 ░C	Beryllium Copper	500	Nickel	1	0.5 dB	Clamp	Female Socket, Plug	Solder	SMC	10 GHz	Polytetrafluoroethylene (PTFE)	Brass	1 Connector, 1 Ferrule	Free Hanging (In-Line), Right Angle	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.42

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
