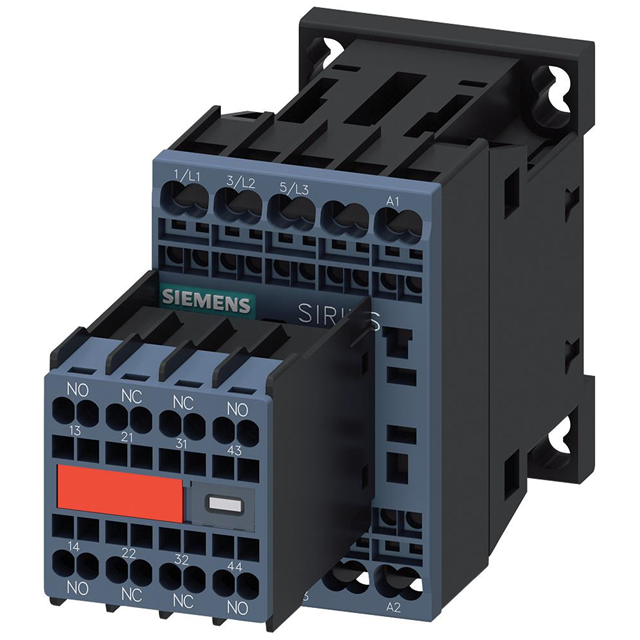

Specification	3RT20162FB443MA0

Coil Power	4 W
Coil Voltage	24 VDC
Contact Form	A, PST-NO, Form, 3
Contact Rating (Current)	9 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	19.2 V
Operate Time	100 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Pin Count	3 pins
Release Time	65 ms
Switching Voltage AC (Max)	690 VAC
Termination Style	Spring Terminal

3RT2016 Series

...

Part	Release Time	Operate Time	Coil Power	Termination Style	Switching Voltage AC (Max)	Must Operate Voltage	Coil Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Features	Pin Count	Contact Form	Contact Rating (Current)
Siemens 3RT20162AP043MA0	13 ms	35 ms	24.3 VA	Spring Terminal	690 VAC	195.5 VDC	230 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
Siemens 3RT20164AN61	13 ms	35 ms	31.7 VA	Screw Terminal	690 VAC	187 VAC	220 V	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
Siemens 3RT20164AR61	13 ms	35 ms	31.7 VA	Screw Terminal	690 VAC	374 VAC	440 VAC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
Siemens 3RT20162AP62	13 ms	35 ms	26.4 VA	Spring Terminal	690 VAC	192 VDC	240 V	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
Siemens 3RT20162BB44	13 ms	100 ms	4 W	Screw Terminal	690 VAC	19.2 V	24 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
Siemens 3RT20161AK61	14 ms	35 ms	26.4 VA	Screw Terminal	690 VAC	96 V	120 V	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
Siemens 3RT20162AP02	13 ms	35 ms	24.3 VA	Screw Terminal	690 VAC	195.5 VDC	230 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
Siemens 3RT20162BM42	13 ms	100 ms	4 W	Spring Terminal	690 VAC	176 VAC	220 V	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
Siemens 3RT20162AD01	13 ms	35 ms	24.3 VA	Screw Terminal	690 VAC	35.7 VAC	42 V	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
Siemens 3RT20162VB42	80 ms	120 ms	1.6 W	Spring Terminal	690 VAC	20.4 VDC	24 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	9 A
