ATS-01F-34-C2-R0

Active

Advanced Thermal Solutions Inc.

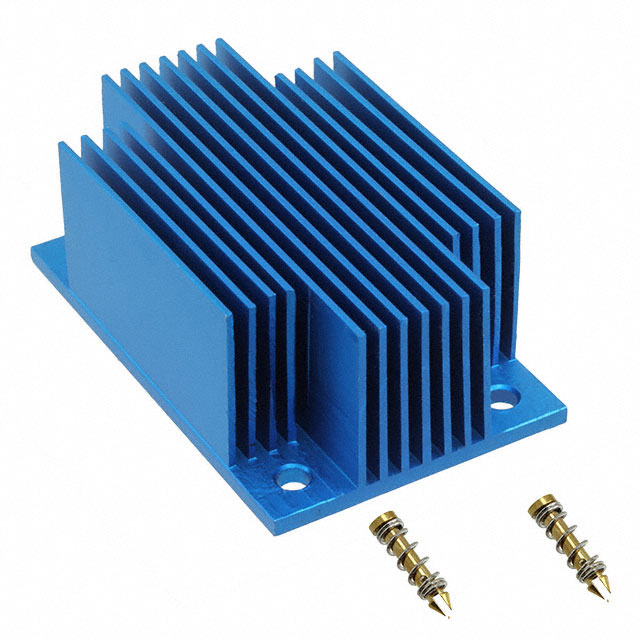

HEATSINK 57.9X36.83X22.86MM T766

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-01F-34-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 57.9X36.83X22.86MM T766

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-01F-34-C2-R0	ATS-01F Series

Attachment Method	Push Pin	Push Pin
Fin Height	-	0.23 - 1.378 "
Fin Height	-	5.84 - 35 mm
Fin Height [z]	0.9 in	0.394 - 1.181 in
Fin Height [z]	22.86 mm	10 - 30 mm
Length	2.28 "	0.984 - 2.756 in
Length	57.9 mm	25 - 70 mm
Length	-	1.181 - 2.362 in
Length	-	30 - 60 mm
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Rectangular, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	14.33 °C/W	2.41 - 100 °C/W
Type	Top Mount	Top Mount
Width	36.83 mm	25 - 57.6 mm
Width	-	0.984 - 2.362 in
Width	-	40 - 60 mm
Width	-	1.181 - 2.267 in
Width	-	50 - 70 mm
Width [y]	1.45 "	1.45 - 2.756 in

ATS-01F Series

HEATSINK 40X40X10MM L-TAB

...

Part	Package Cooled	Shape	Fin Height [z]	Fin Height [z]	Material	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Type	Material Finish	Attachment Method	Length [x]	Length [x]	Width	Fin Height	Fin Height	Length	Length	Width	Width [y]	Width [y]
Advanced Thermal Solutions Inc. ATS-01F-61-C1-R0	ASIC, BGA, CPU, LGA	Fins, Square	0.394 in	10 mm	Aluminum	1.575 in	40 mm	21.94 °C/W	Top Mount	Blue Anodized	Push Pin
Advanced Thermal Solutions Inc. ATS-01F-176-C1-R0	ASIC, BGA, CPU, LGA	Fins, Square			Aluminum	1.378 in			Top Mount	Blue Anodized	Push Pin	1.378 in	35 mm	35 mm	0.59 "	15 mm
Advanced Thermal Solutions Inc. ATS-01F-76-C1-R0	ASIC, BGA, CPU, LGA	Fins, Square			Aluminum	0.984 in		11.5 °C/W	Top Mount	Blue Anodized	Push Pin			25 mm	0.984 in	25 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-01F-63-C1-R0	ASIC, BGA, CPU, LGA	Fins, Square	0.79 in	20 mm	Aluminum	1.575 in	40 mm	12.29 °C/W, 100 LFM	Top Mount	Blue Anodized	Push Pin
Advanced Thermal Solutions Inc. ATS-01F-184-C3-R0	ASIC, BGA, CPU, LGA	Fins, Square			Aluminum	1.575 in	40 mm	4.24 °C/W, 100 LFM	Top Mount	Blue Anodized	Push Pin				0.984 in	25 mm
Advanced Thermal Solutions Inc. ATS-01F-66-C2-R0	ASIC, BGA, CPU, LGA	Fins, Square			Aluminum	1.575 in	40 mm	5.77 °C/W	Top Mount	Blue Anodized	Push Pin				1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-01F-173-C1-R0	ASIC, BGA, CPU, LGA	Fins, Square	1.181 in	30 mm	Aluminum			4.68 °C/W	Top Mount	Blue Anodized	Push Pin	1.181 in	30 mm	30 mm					1.181 in
Advanced Thermal Solutions Inc. ATS-01F-171-C2-R0	ASIC, BGA, CPU, LGA	Fins, Square	0.79 in	20 mm	Aluminum			7.33 °C/W	Top Mount	Blue Anodized	Push Pin	1.181 in	30 mm	30 mm					1.181 in
Advanced Thermal Solutions Inc. ATS-01F-123-C2-R0	ASIC, BGA, CPU, LGA	Fins, Square	0.79 in	20 mm	Aluminum			4.16 °C/W	Top Mount	Blue Anodized	Push Pin	1.969 in	50 mm							50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-01F-06-C3-R0	ASIC, BGA, CPU, LGA	Fins, Square	0.394 in	10 mm	Aluminum	1.772 in		20.27 °C/W	Top Mount	Blue Anodized	Push Pin	1.772 "		45 mm			45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.23
		10	$ 6.06
		25	$ 7.59
		30	$ 5.92
		50	$ 7.32
		100	$ 7.05
		250	$ 6.72
		500	$ 6.48
		1000	$ 6.24

Description

General part information

ATS-01F Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
