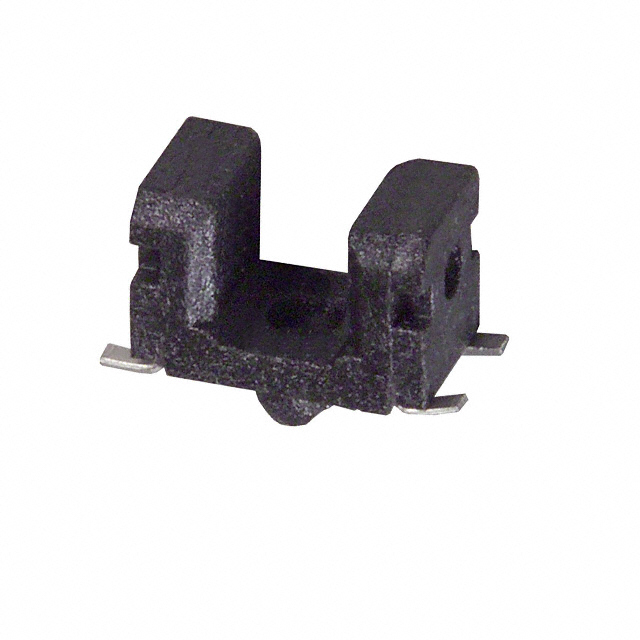

GP1S092HCPIF

Active

SHARP/Socle Technology

SENSOR OPT SLOT PHOTOTRANS 4SMD

Search across all available documentation for this part.

Active

SHARP/Socle Technology

SENSOR OPT SLOT PHOTOTRANS 4SMD

Technical Specifications

Parameters and characteristics for this part

Specification	GP1S092HCPIF

Current - Collector (Ic) (Max) [Max]	20 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	4-SMD
Response Time	50 µs
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V

SENSOR OPT SLOT PHOTOTRANS 4SMD

Part	Package / Case	Sensing Distance	Sensing Distance	Mounting Type	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Response Time	Current - DC Forward (If) (Max)	Sensing Method
SHARP/Socle Technology GP1S092HCPIF	4-SMD	0.079 in	2 mm	Surface Mount	Phototransistor	-25 °C	85 °C	Unamplified	20 mA	35 V	50 µs	50 mA	Through-Beam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.079" (2mm) Phototransistor 4-SMD
