MG0675S-BN4MM
ObsoleteLITTELFUSE
IGBT MODULE, DUAL [HALF BRIDGE], 100 A, 1.45 V, 250 W, 150 °C, MODULE
MG0675S-BN4MM
ObsoleteLITTELFUSE
IGBT MODULE, DUAL [HALF BRIDGE], 100 A, 1.45 V, 250 W, 150 °C, MODULE
Description
General part information
MG0675S-BN4MM

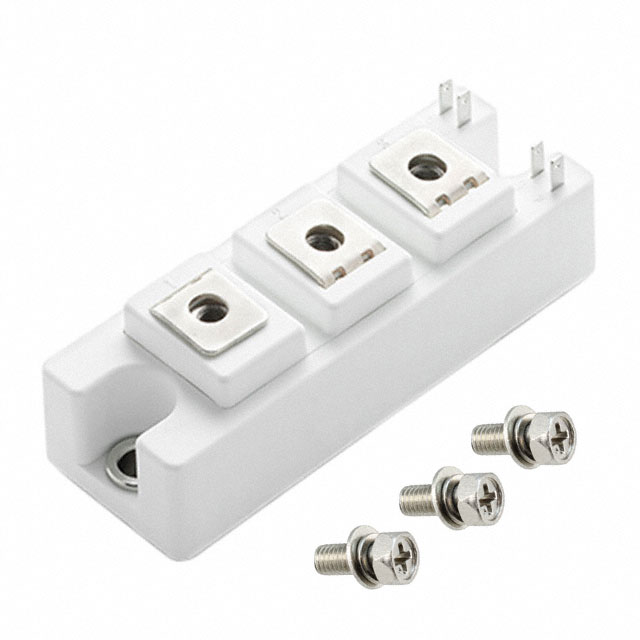

IGBT Module Half Bridge 600 V 100 A 250 W Chassis Mount S3
Technical Specifications
Parameters and characteristics for this part
| Specification | MG0675S-BN4MM |
|---|---|
| Configuration | Half Bridge |
| Current - Collector (Ic) (Max) | 100 A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 4.6 nF |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | S-3 Module |
| Package Name | S3 |
| Power - Max | 250 VA |
| Vce(on) (Max) | 1.9 V |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
