D101J12S215HQF
ObsoleteLITTELFUSE

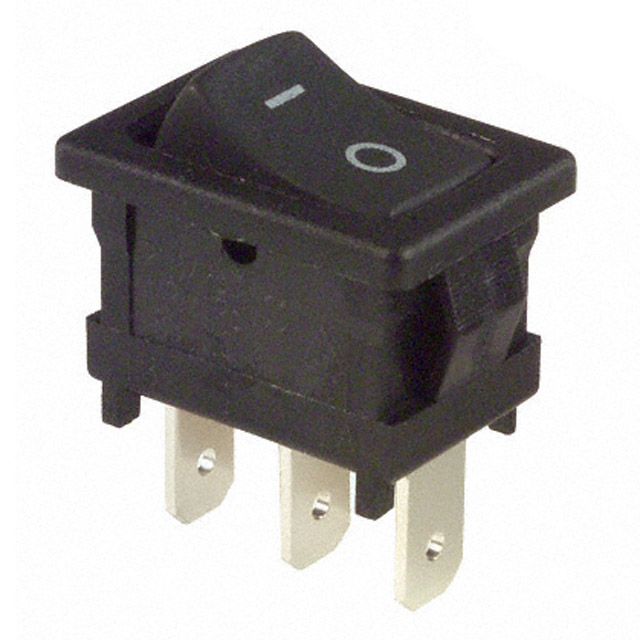

SWITCH ROCKER SPDT 4A 125V
D101J12S215HQF
ObsoleteLITTELFUSE
SWITCH ROCKER SPDT 4A 125V
Description
General part information
D101J Series
Rocker Switch SPDT 4A (AC) 125 V Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | D101J12S215HQF |
|---|---|
| Actuator Marking | O I |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 4 A |
| Electrical Life (Cycles) | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Length | 19.2 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 12.9 mm |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | On-On |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
