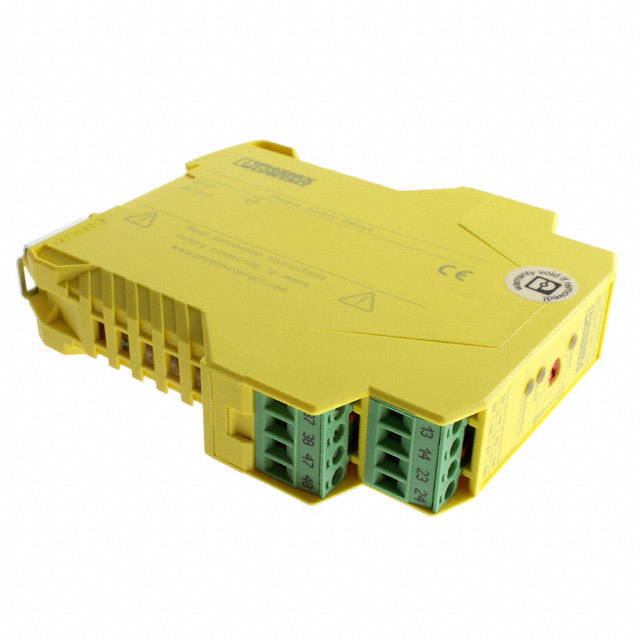

2981800
ActivePhoenix Contact
ELECTROMECHANICAL RELAY 24VDC 320OHM 6A DPST-NO(22.5X114.5X99)MM DIN RAIL SAFETY RELAY
2981800
ActivePhoenix Contact
ELECTROMECHANICAL RELAY 24VDC 320OHM 6A DPST-NO(22.5X114.5X99)MM DIN RAIL SAFETY RELAY
Description
General part information
2981800
ELECTROMECHANICAL RELAY 24VDC 320OHM 6A DPST-NO(22.5X114.5X99)MM DIN RAIL SAFETY RELAY
Technical Specifications
Parameters and characteristics for this part
| Specification | 2981800 |
|---|---|
| Coil Current | 0.075 A |
| Coil Resistance | 500 Ohms |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Form A Count | 2 |
| Mounting Type | DIN Rail |
| Operate Time | 150 ms |
| Operating Temperature (Max) | 45 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 250 VDC |
| Termination Style | Screw Terminal |
