120953-5
ActiveTE Connectivity AMP Connectors

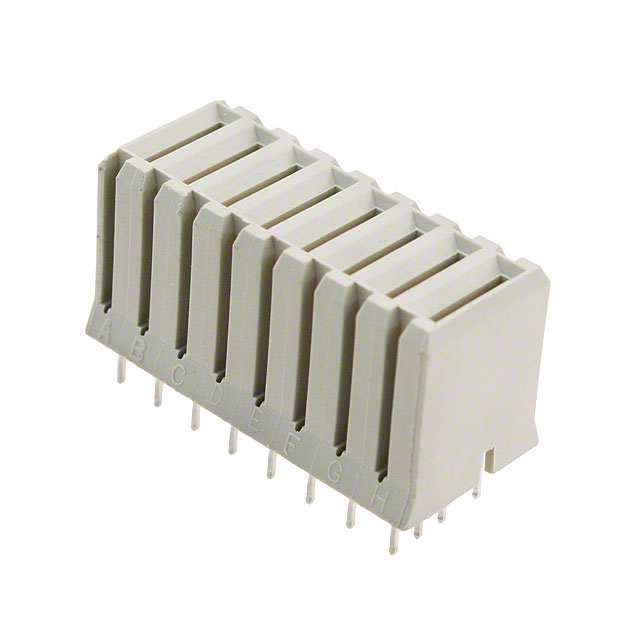

CONN RCPT BLADE PWR 8POS PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
120953-5
ActiveTE Connectivity AMP Connectors
CONN RCPT BLADE PWR 8POS PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 120953-5 | 120953 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Style | Blade Power | Blade Power |
| Connector Type | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold, Gold-Palladium | Gold, Gold-Palladium |
| Contact Layout, Typical | 8 Power | 8 Power, 9 Power |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 8 - 9 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Termination | Press-Fit | Press-Fit |
| Voltage Rating | 250 VDC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.67 | |
| 10 | $ 6.36 | |||
| 25 | $ 5.90 | |||
| 50 | $ 5.58 | |||
| 100 | $ 5.27 | |||
| 250 | $ 4.96 | |||
120953 Series
CONN RCPT BLADE PWR 8POS PCB
| Part | Number of Positions | Voltage Rating | Number of Rows | Connector Type | Termination | Contact Finish | Material Flammability Rating | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Connector Usage | Color | Number of Positions Loaded | Mounting Type | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 120953-5 | 8 | 250 VDC | 1 | Receptacle, Female Blade Sockets | Press-Fit | Gold, Gold-Palladium | UL94 V-0 | Blade Power | -55 °C | 125 °C | Backplane | Gray | All | Through Hole | 8 Power |
TE Connectivity AMP Connectors 120953-6 | 9 | 250 VDC | 1 | Receptacle, Female Blade Sockets | Press-Fit | Gold, Gold-Palladium | UL94 V-0 | Blade Power | -55 °C | 125 °C | Backplane | Gray | All | Through Hole | 9 Power |
Description
General part information
120953 Series
8 Connector Receptacle, Female Blade Sockets Through Hole Gray Blade Power
Documents
Technical documentation and resources
