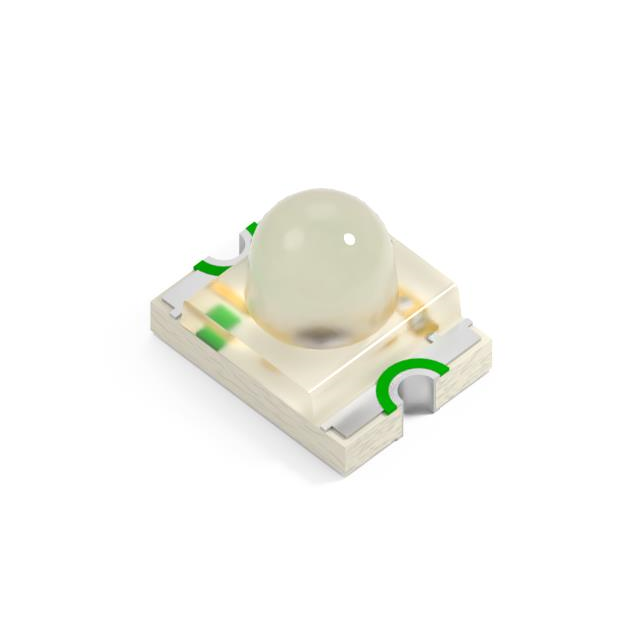

XZVG78W
ActiveSunLED
LED GREEN CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZVG78W
ActiveSunLED
LED GREEN CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZVG78W |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 2.4 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 597 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1209, 3224 Metric |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.4 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.14 | |||
| Tape & Reel (TR) | 1500 | $ 0.12 | ||
| 3000 | $ 0.11 | |||
| 7500 | $ 0.10 | |||
| 10500 | $ 0.09 | |||
| 37500 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
XZVG78 Series
Green 570nm LED Indication - Discrete 2.1V 1209 (3224 Metric)
