9732 060100

Active

Belden Inc.

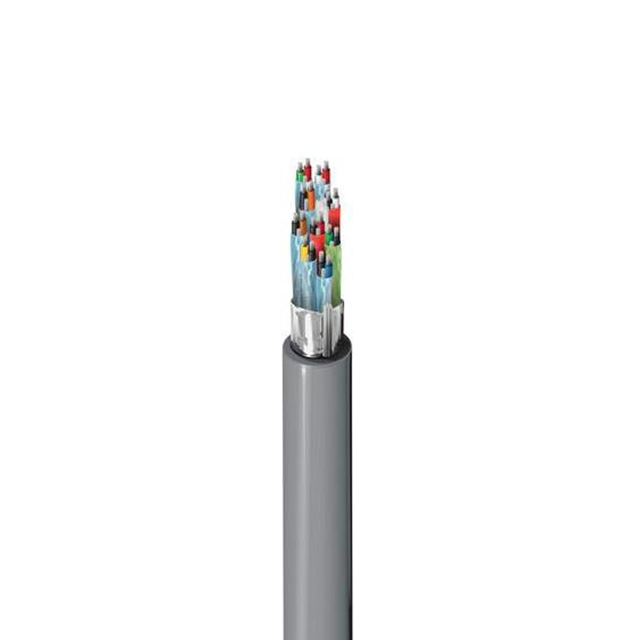

CABLE 18COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 18COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9732 060100

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	12.4 mm
Jacket (Insulation) Diameter [diameter]	0.488 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	18
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2493
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Usage	Cable Type	Length [x]	Length [x]	Shield Coverage	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Ratings	Voltage	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket Color	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Material
Belden Inc. 9732 060100	Computer	Multi-Conductor	30.5 m	100 ft	100 %	Aluminum	-20 C	80 C	18	UL Style 2493	300 V	24 AWG	Poly-Vinyl Chloride (PVC)	12.4 mm	0.488 in	Drain Wire	Chrome	Foil	32 AWG	7	0.048 in	1.219 mm	Foam Polyethylene (FPE)	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 18.26

General part information

18 (9 Pair Twisted) Conductor Multi-Conductor Cable Chrome 24 AWG Foil 100.0' (30.5m)
