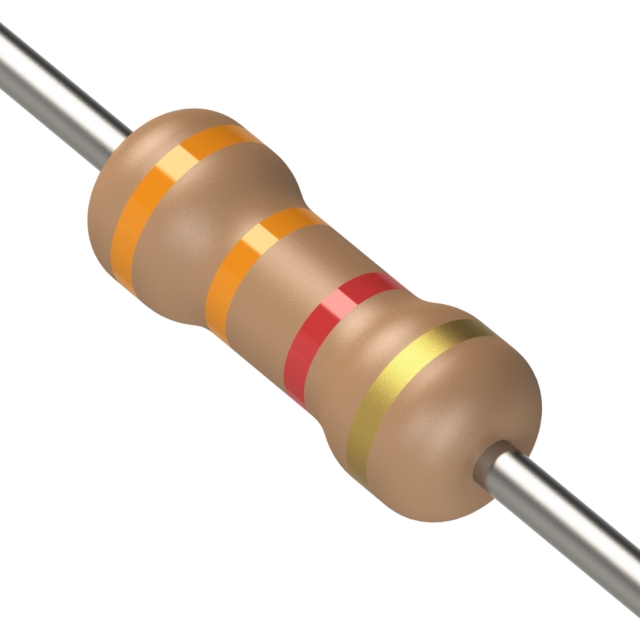

CF1/4CT52R332J

Active

KOA Speer Electronics, Inc.

RES 3.3K OHM 5% 1/4W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF1/4CT52R332J

Active

KOA Speer Electronics, Inc.

RES 3.3K OHM 5% 1/4W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF1/4CT52R332J	CF1/4 Series

Composition	Carbon Film	Carbon Film
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	0.25 W	0.25 W
Power (Watts)	250 mW	250 mW
Resistance	3300 Ohms	1 - 750000 Ohms
Size / Dimension [diameter]	0.091 "	0.091 "
Size / Dimension [diameter]	2.3 mm	2.3 mm
Size / Dimension [z]	6.1 mm	6.1 mm
Size / Dimension [z]	0.24 "	0.24 "
Supplier Device Package	Axial	Axial
Temperature Coefficient [Max]	350 ppm/°C	-700 - 350 ppm/°C
Temperature Coefficient [Min]	-450 ppm/°C	-1300 - 0 ppm/°C
Tolerance	5 %	5 %

CF1/4 Series

RES 820 OHM 5% 1/4W AXIAL

...

Part	Number of Terminations	Resistance	Tolerance	Package / Case	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Supplier Device Package	Composition	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]
KOA Speer Electronics, Inc. CF1/4CT52R821J	2	820 Ohms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	350 ppm/°C	-450 ppm/°C	0.25 W	250 mW	155 °C	-55 °C
KOA Speer Electronics, Inc. CF1/4CT52R822J	2	8.2 kOhms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	350 ppm/°C	-450 ppm/°C	0.25 W	250 mW	155 °C	-55 °C
KOA Speer Electronics, Inc. CF1/4CT52R200J	2	20 Ohms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	350 ppm/°C	-450 ppm/°C	0.25 W	250 mW	155 °C	-55 °C
KOA Speer Electronics, Inc. CF1/4C471J	2	470 Ohms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	350 ppm/°C	-450 ppm/°C	0.25 W	250 mW	155 °C	-55 °C
KOA Speer Electronics, Inc. CF1/4CT52R121J	2	120 Ohms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	350 ppm/°C	-450 ppm/°C	0.25 W	250 mW	155 °C	-55 °C
KOA Speer Electronics, Inc. CF1/4C272J	2	2.7 kOhms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	350 ppm/°C	-450 ppm/°C	0.25 W	250 mW	155 °C	-55 °C
KOA Speer Electronics, Inc. CF1/4CT52R162J	2	1.6 kOhms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	350 ppm/°C	-450 ppm/°C	0.25 W	250 mW	155 °C	-55 °C
KOA Speer Electronics, Inc. CF1/4C104J	2	100 kOhms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	350 ppm/°C	-450 ppm/°C	0.25 W	250 mW	155 °C	-55 °C
KOA Speer Electronics, Inc. CF1/4CT52R621J	2	620 Ohms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	350 ppm/°C	-450 ppm/°C	0.25 W	250 mW	155 °C	-55 °C
KOA Speer Electronics, Inc. CF1/4CT52R824J	2	820 kOhms	5 %	Axial	0.091 "	6.1 mm	2.3 mm	0.24 "	Axial	Carbon Film	0	-1000 ppm/°C	0.25 W	250 mW	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.09
		25	$ 0.06
		50	$ 0.05
		100	$ 0.03
		250	$ 0.03
		500	$ 0.02
		1000	$ 0.02
	Tape & Reel (TR)	5000	$ 0.01
		10000	$ 0.01
		25000	$ 0.01
		50000	$ 0.01
		125000	$ 0.01

Description

General part information

CF1/4 Series

3.3 kOhms ±5% 0.25W, 1/4W Through Hole Resistor Axial Carbon Film
