000-16300

Active

AMPHENOL RF

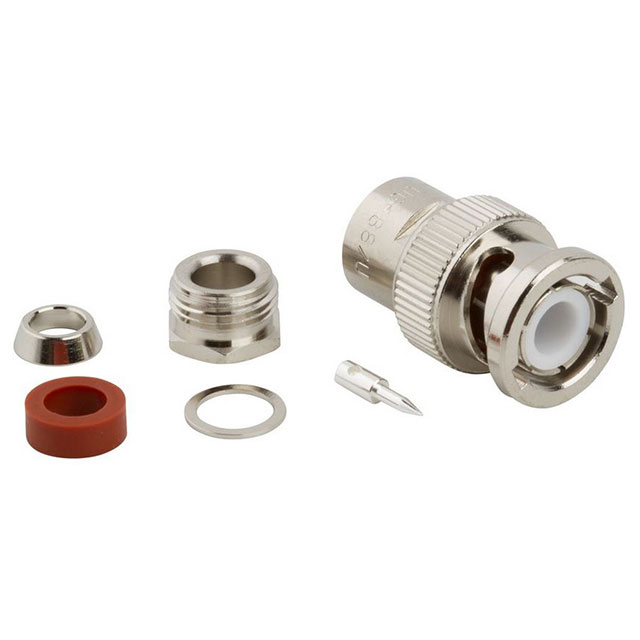

CONN BNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-16300	000-16 Series

Adapter Series	-	N to HN
Adapter Type	-	Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	195, Belden 1855, 180B, 1865A, 180A, 180, RG-122	195, Belden 1855, 180B, 1865A, 180A, 180, RG-122, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Silver	Silver
Connector Style	BNC	BNC, HN Type
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Conversion Type	-	Between Series
Convert From (Adapter End)	-	N Jack, Female Socket
Convert To (Adapter End)	-	Male Pin, HN Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	Insulator, Braid Clamp, Clamp, Washer, Contact, Gasket, Connector	Insulator, Braid Clamp, Clamp, Washer, Contact, Gasket, Connector
Ingress Protection	Weatherproof	Weatherproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp
Style	-	Straight
Voltage Rating	500 V	500 V

CONN TYPE N-HN ADAPTER 0HZ TO 4GHZ 50OHM ST RCP/PL SILVER

Part	Convert To (Adapter End)	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Mounting Type	Conversion Type	Dielectric Material	Impedance	Style	Center Contact Plating	Adapter Series	Convert From (Adapter End)	Adapter Type	Body Material	Center Contact Material	Fastening Type	Ingress Protection	Shield Termination	Insertion Loss	Mating Cycles	Cable Group	Housing Color	Connector Style	Contact Termination	Connector Type	Number of Ports	Includes	Voltage Rating
AMPHENOL RF 000-16050	HN Plug, Male Pin	Nickel	-65 ░C	165 °C	4 GHz	Free Hanging (In-Line)	Between Series	Polytetrafluoroethylene (PTFE)	50 Ohms	Straight	Silver	N to HN	Female Socket, N Jack	Plug to Jack	Brass	Beryllium Copper
AMPHENOL RF 000-16300		Nickel	-65 ░C	165 °C	4 GHz	Free Hanging (In-Line)		Polytetrafluoroethylene (PTFE)	50 Ohms		Silver				Brass	Brass	Bayonet Lock	Weatherproof	Clamp	0.2 dB	500	180, 180A, 180B, 1865A, 195, Belden 1855, RG-122	Silver	BNC	Solder	Male Pin, Plug	1	Braid Clamp, Clamp, Connector, Contact, Gasket, Insulator, Washer	500 V
AMPHENOL RF 000-16750		Nickel	-65 ░C	165 °C	4 GHz			Polytetrafluoroethylene (PTFE)	50 Ohms		Silver				Brass	Brass			Clamp		500	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Silver	HN Type	Solder	Male Pin, Plug	1
