Description
General part information
19000005026

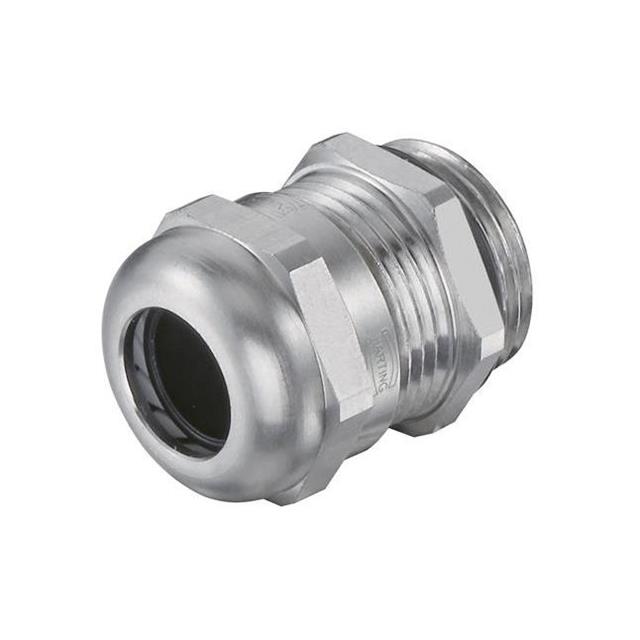

Cable Gland Brass, Nickel Plated M12 Silver
Technical Specifications
Parameters and characteristics for this part
| Specification | 19000005026 |
|---|---|
| Color | Silver |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Material | Nickel Plated, Brass |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Outside Cable Diameter (Max) | 0.256 in |
| Outside Cable Diameter (Min) | 0.118 in |
| Thread Size | M12 |
| Type | Cable Gland |
