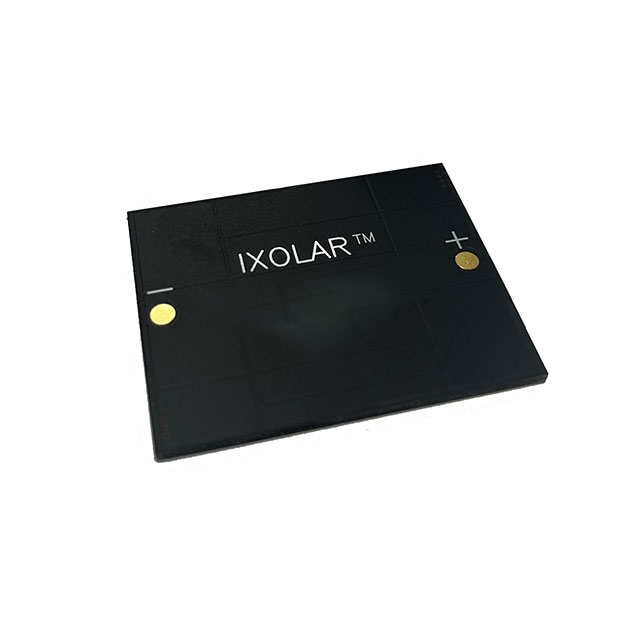

SM141K10LV

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 307MW 6.91V

Search across all available documentation for this part.

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 307MW 6.91V

Technical Specifications

Parameters and characteristics commom to parts in this series

MONOCRYST SOLAR CELL 184MW 4.15V

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts) - Max [Max]	Package / Case	Voltage - Open Circuit	Current - Short Circuit (Isc)	Type	Voltage @ Pmpp	Current @ Pmpp	Size / Dimension [z]	Size / Dimension [y]	Voltage @ Pmpp [custom]
ANYSOLAR Ltd SM141K06L	23 mm	0.906 in	42 mm	0.083 in	1.654 in	2.1 mm	90 °C	-40 °C	184 mW	Cells	4.15 V	58.6 mA	Monocrystalline	3.35 V	55.1 mA
ANYSOLAR Ltd SM141K10LV	36 mm	1.417 in	45 mm	0.071 in	1.772 in	1.8 mm	90 °C	-40 °C	307 mW	Cells		58.6 mA	Monocrystalline	5.58 V	55.1 mA
ANYSOLAR Ltd SM141K09L		0.906 in	63 mm	0.083 in	2.48 "		90 °C	-40 °C	277 mW	Cells	6.22 V	58.6 mA	Monocrystalline	5.02 V	55.1 mA	2.1 mm	23 mm
ANYSOLAR Ltd SM141K04LV	15 mm	0.591 in	45 mm	0.083 in	1.772 in	2.1 mm	90 °C	-40 °C	123 mW	Cells	2.76 V	58.6 mA	Monocrystalline	2.23 V	55.1 mA
ANYSOLAR Ltd SM141K08L	15 mm	0.591 in	88 mm	0.083 in	3.465 "	2.1 mm	90 °C	-40 °C	246 mW	Cells	5.53 V	58.6 mA	Monocrystalline		55.1 mA			4.46 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 307 mW 6.91 V

Technical documentation and resources

No documents available
