BJ76TL

Active

Cinch Connectivity Solutions Trompeter

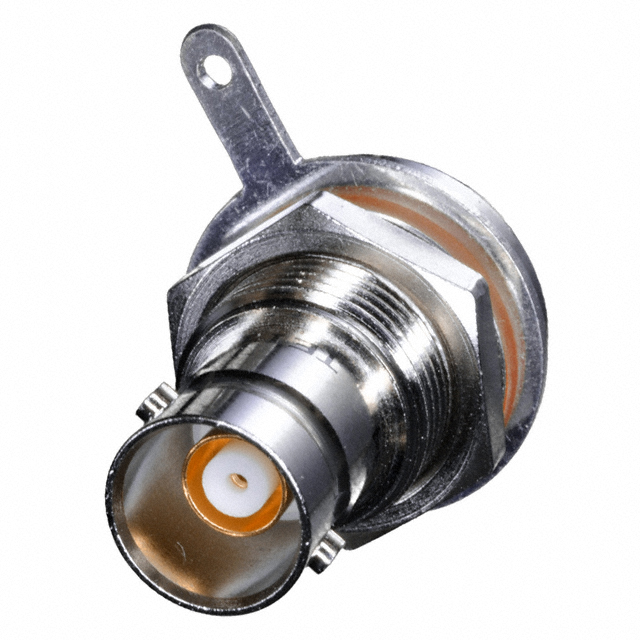

CONN TRB JACK STR SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BJ76TL

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack
Contact Termination	Solder Cup
Fastening Type	Bayonet Lock
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	Connector, Washer, Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder Tag
Voltage Rating	400 V

CONN TRB JACK STR SOLDER

Part	Connector Style	Voltage Rating	Fastening Type	Shield Termination	Mating Cycles	Housing Color	Center Contact Material	Center Contact Plating	Mounting Feature	Includes	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Finish	Contact Termination	Frequency - Max [Max]	Number of Ports	Impedance
Cinch Connectivity Solutions Trompeter BJ76TL	TRB, Twinaxial/Triaxial	400 V	Bayonet Lock	Solder Tag	500	Silver	Beryllium Copper	Gold	Bulkhead - Front Side Nut	Connector, Nut, Washer	Brass	-65 ░C	165 °C	Female Socket (Concentric), Jack	Nickel	Solder Cup	500 MHz	1	Non-Constant
