108990009
ObsoleteSeeed Technology Co., Ltd

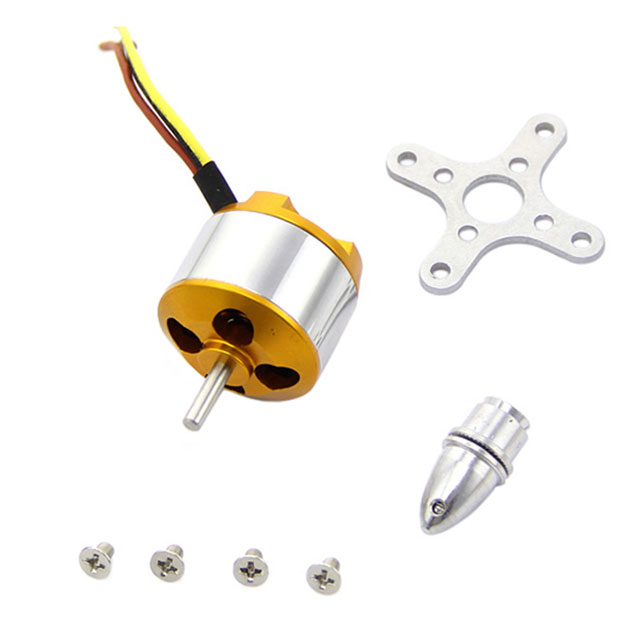

STANDARD MOTOR 6960 RPM 12V
108990009
ObsoleteSeeed Technology Co., Ltd
STANDARD MOTOR 6960 RPM 12V
Description
General part information
108990009
Brushless (BLDC) DC Motor Standard 6960 RPM 76 ~ 181.2W 12VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 108990009 |
|---|---|
| Diameter - Shaft | 0.118 in |
| Function | Standard |
| Length - Shaft and Bearing | 0.539 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 0.63 in |
| Power - Rated (Max) | 181.2 W |
| Power - Rated (Min) | 76 W |
| Power - Rated Voltage (Max) | 181.2 W |
| Power - Rated Voltage (Min) | 76 W |
| RPM | 6960 RPM |
| Size / Dimension Diameter | 1.122 in |
| Size / Dimension Shape | Round |
| Termination Style | Wire Leads |
| Type | DC Motor |
| Voltage - Rated | 12 VAC |
| Weight | 0.132 lb |
