1822736
ActivePhoenix Contact

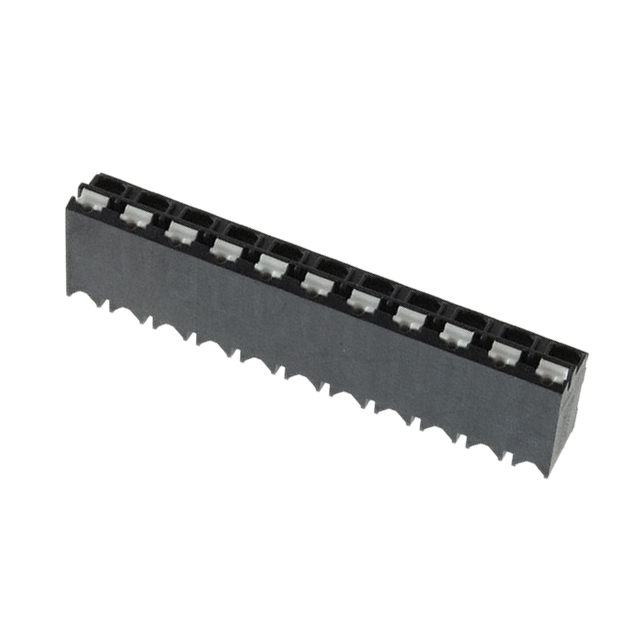

TERM BLK 11P TOP ENT 5.08MM PCB
1822736
ActivePhoenix Contact
TERM BLK 11P TOP ENT 5.08MM PCB
Description
General part information
1822736
11 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1822736 |
|---|---|
| Color | Black |
| Contact Material - Plating | Tin Plated |
| Current | 10 A |
| Housing Material | Liquid Crystal Polymer, LCP |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 11 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
