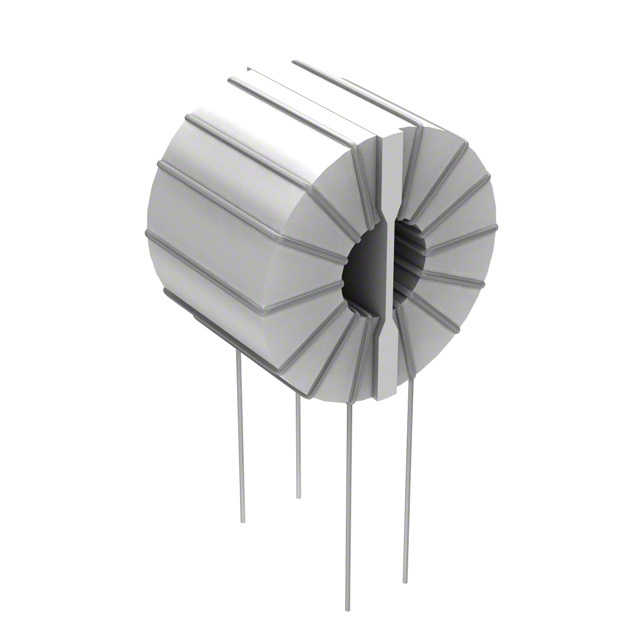

TF1713VU-102Y3R0-01
ObsoleteTDK Corporation
CMC 3A 2LN TH
TF1713VU-102Y3R0-01
ObsoleteTDK Corporation
CMC 3A 2LN TH
Description
General part information
TF1713VU-102Y3R0-01
2 Line Common Mode Choke Through Hole 3A DCR
Technical Specifications
Parameters and characteristics for this part
| Specification | TF1713VU-102Y3R0-01 |
|---|---|
| Current Rating (Max) | 3 A |
| Filter Type | Power Line |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4 PC Pin, No Base, Vertical |
| Package Leads | 4 Leads |
| Package Name | No Base, Vertical |
| Pin Count | 4 |
| Size / Dimension Diameter | 0.65 in |
| Size / Dimension Width | 0.492 in |
